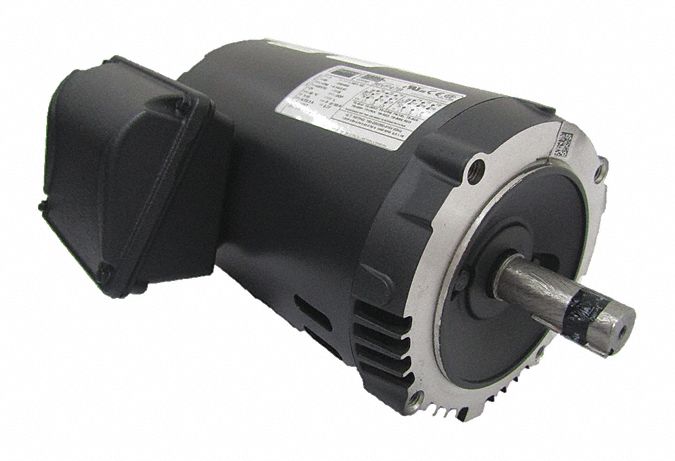

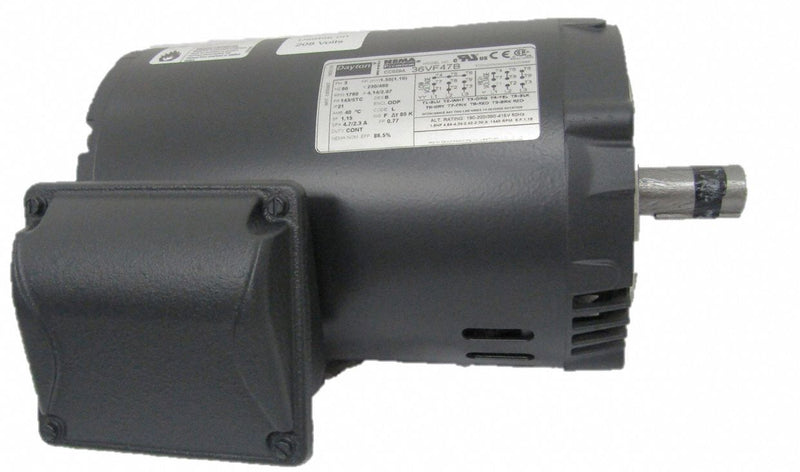

Dayton 1 1/2 HP, General Purpose Motor, 3-Phase, 1755 Nameplate RPM, 230/460 Voltage, 143/5TC Frame - 36VF47

DaytonSKU: C2878490
MPN : 36VF47
Weight : 36.3 lb
filler

Price:
$370.66 $452.02

Availability : Usually Ships in 1-3 Business Days

To help save money, replace that old electric motor with this compact and energy-efficient 3-Phase Face-Mount motor. Use where a compact size and less vibration is needed. Helps efficiently run pumps, fans, conveyors, material handling equipment, machine tools, and more. Features steel frame and ball bearings.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM1755
Frame143/5TC
Voltage230/460
Hz60
Phase3
Full Load Amps4.3/2.2
No. of Speeds1
Motor Mounting TypeFace
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft9 11/32 in
Overall Length11 9/16 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency86.5 %
CC NumberCC029A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
