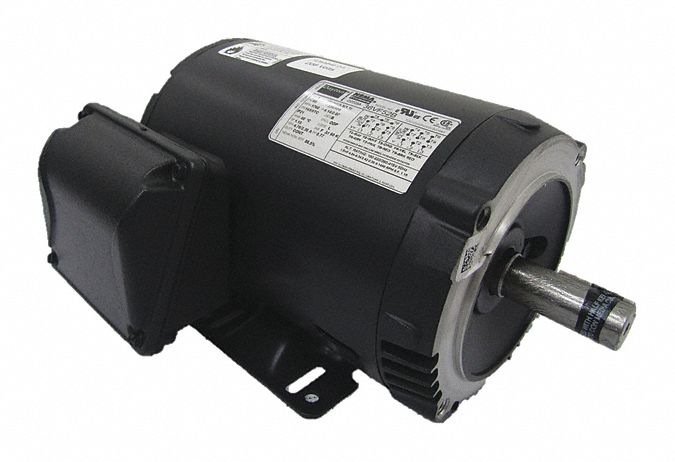

Dayton 36VF52 - GP Motor ODP 1-1/2 HP 1760 rpm 7/8in dia

DaytonSKU: C2878739
MPN : 36VF52
Weight : 43.5 lb
filler

Price:
$392.78 $479.00

Availability : Usually Ships in 1-3 Business Days
ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM1760
Frame143/5TC
Voltage230/460
Hz60
Phase3
Full Load Amps4.1/2
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft10 1/8 in
Overall Length12 3/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency86.5 %
CC NumberCC029A
Inverter RatedYes
IncludesConduit Box
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
