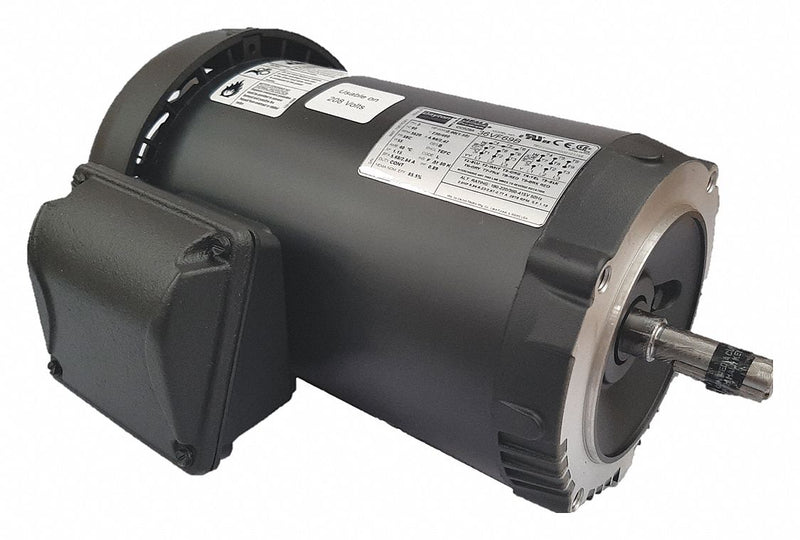

To help save money, replace that old electric motor with this compact and energy-efficient 3-Phase Face-Mount motor. Use where a compact size and less vibration is needed. Helps efficiently run pumps, fans, conveyors, material handling equipment, machine tools, and more. Features steel frame and ball bearings.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 2 |
| Nameplate RPM | 3480 |
| Frame | 56C |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 5.2/2.6 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |

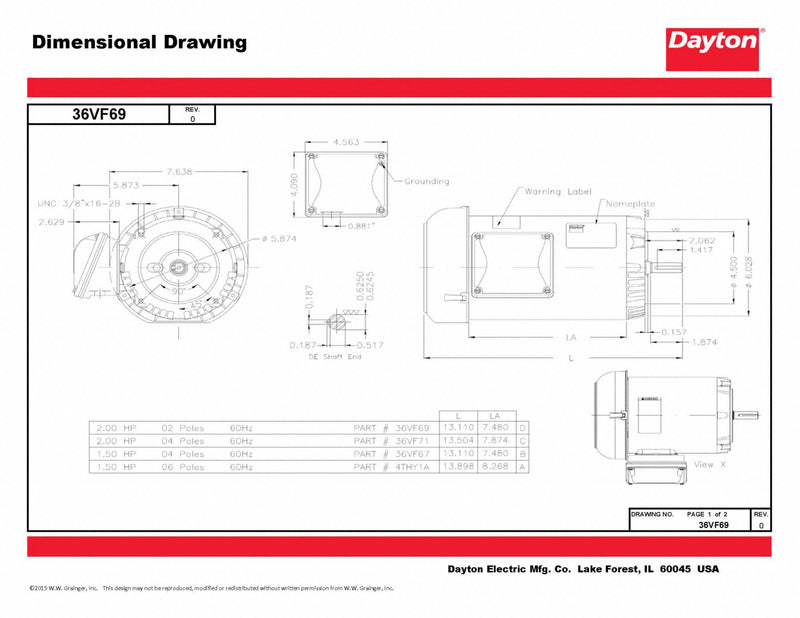

| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 11 1/4 in |
| Overall Length | 13 1/8 in |
| Motor Shaft Design | Keyed |
| Standards | CE, CSA, UL |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 85.5 % |
| CC Number | CC029A |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
