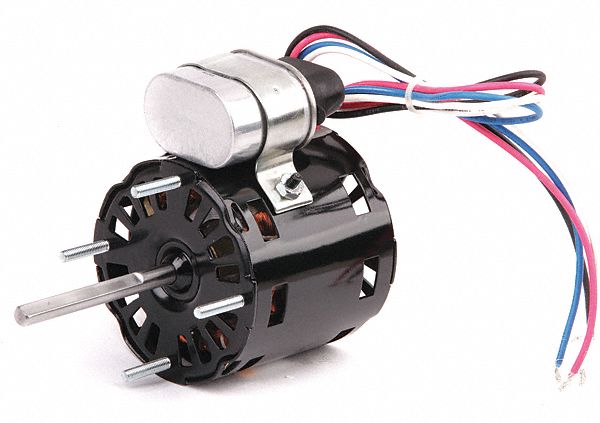

HVAC Motor; Motor Design: Permanent Split Capacitor; HP: 1/25; No. of Speeds: 3; Voltage: 115; Motor Shaft Rotation: CCWSE; Motor Enclosure Design: Open Air-Over; Motor Mounting Type: Stud; Shaft Dia.: 5/16 in; Shaft Length: 3 in; Number of Shafts: 1; Motor Thermal Protection: Auto; Nameplate RPM: 1550; Phase: 1; Motor Application: HVAC/R; Motor Sub Application: Direct Drive Fan/Blower; Frame: 3.3; Motor Bearings: Sleeve; Full Load Amps: 0.65; Duty: Continuous; Motor Service Factor: 1; Hz: 60; Body Dia.: 3.3 in; Ins. Class: B; Max. Ambient Temp.: 40 Degrees C; Length Less Shaft: 3 1/16 in; Mounting Stud Location: 4/Opposite Lead End; Stud/Base Mtg. Pattern: 2-7/8 in x 2-7/8 in; Motor Shaft Design: Flat; Application: HVAC/R; Cord Length: 16 in; Includes: Capacitor; Standards: CSA Certified (244617), UL Recognized (E37403); Mounting Pattern: 2-7/8 x 2-7/8
| Item | HVAC Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/25 |
| No. of Speeds | 3 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWSE |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 5/16 in |
| Shaft Length | 3 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 3.3 |
| Motor Bearings | Sleeve |
| Full Load Amps | 0.65 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 3.3 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 3 1/16 in |
| Mounting Stud Location | 4/Opposite Lead End |
| Stud/Base Mtg. Pattern | 2-7/8 in x 2-7/8 in |
| Motor Shaft Design | Flat |
| Application | HVAC/R |
| Cord Length | 16 in |
| Includes | Capacitor |
| Standards | CSA Certified (244617), UL Recognized (E37403) |
| Mounting Pattern | 2-7/8 x 2-7/8 |
