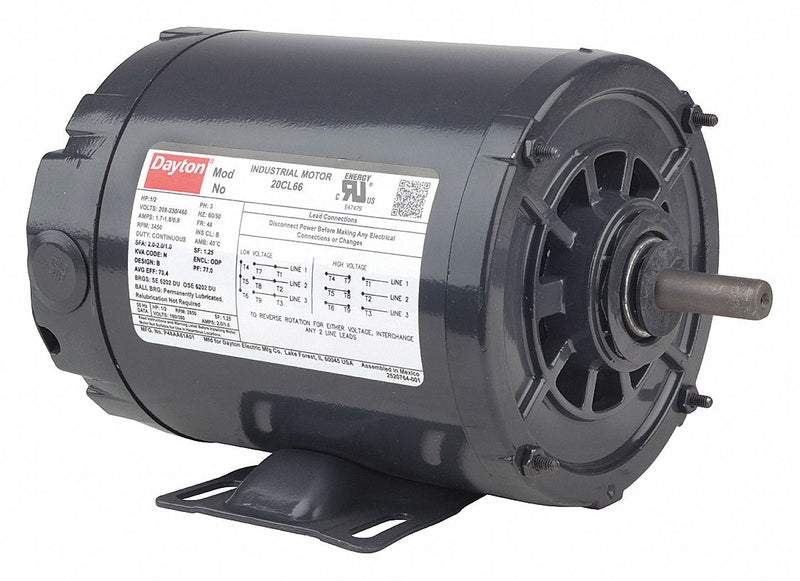

Dayton 1/3 HP, General Purpose Motor, 3-Phase, 1725 Nameplate RPM, 230/460 Voltage, 48 Frame - 103818

DaytonSKU: C1547755
MPN : 103818
Weight : 15.0 lb

filler

Price:
$371.81 $599.69

Availability : Usually Ships in 3 Business Days

Motor complies with 2015 efficiency legislation for small-frame motors.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP1/3
Nameplate RPM1725
Frame48
Voltage230/460
Hz60/50
Phase3
Full Load Amps1.2/0.6
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal or Vertical Shaft Down
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.35
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1/2 in
Shaft Length1 1/2 in
Length Less Shaft9 3/8 in
Overall Length10 7/8 in
Motor Shaft DesignFlat
StandardsUL Recognized for US and Canada (E47479)
DutyContinuous
Motor Efficiency GroupPremium Efficient
Nominal Efficiency73.4 %
Inverter RatedYes
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionEnergy Aware Certified
