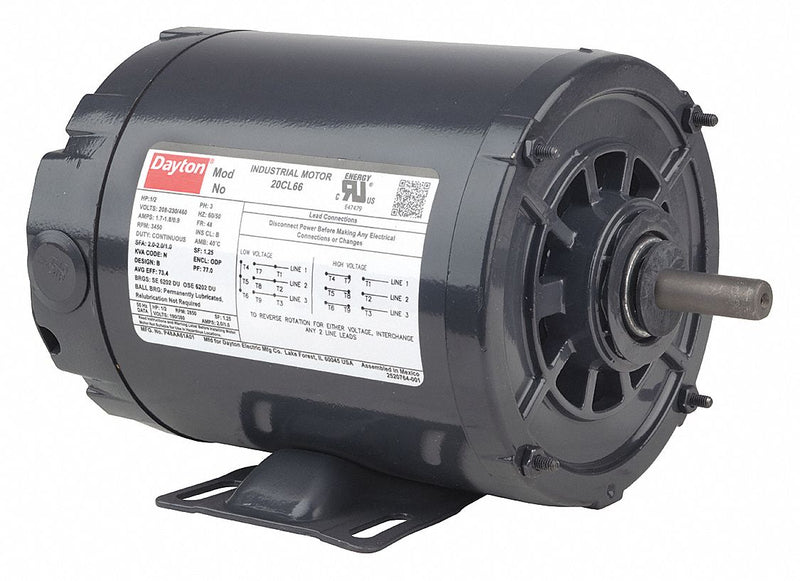

Motor complies with 2015 efficiency legislation for small-frame motors.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/4 |
| Nameplate RPM | 1725 |
| Frame | 48 |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 1/0.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 1/2 in |
| Length Less Shaft | 8 3/4 in |
| Overall Length | 10 3/8 in |
| Motor Shaft Design | Flat |
| Standards | UL Recognized for US and Canada (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Premium Efficient |
| Nominal Efficiency | 69.5 % |
| Inverter Rated | Yes |
| Manufacturers Warranty Length | 1 yr |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition | Energy Aware Certified |
