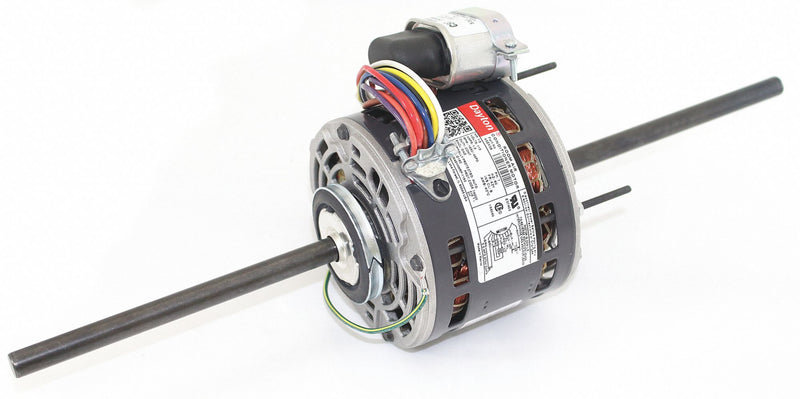

| Item | Room Air Conditioner Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/8 |
| No. of Speeds | 4 |
| Voltage | 115 |
| Motor Shaft Rotation | CW/CCW |
| Frame | Non-Standard |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Ring/Stud |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 3/4 in |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Room Air Conditioner |
| Motor Bearings | Ball |
| Capacitor Required | Included |
| Ins. Class | B |
| Mounting Stud Pattern | 3-1/8 in x 3-1/8 in |
| Motor Service Factor | 1 |
| Duty | Continuous |
| Hz | 60 |
| Full Load Amps | 1.9 |
| Max. Ambient Temp. | 40 Degrees C |
| Body Dia. | 4 15/16 in |
| Length Less Shaft | 4 15/16 in |
| Motor Shaft Design | Flat |
| Stud Size | #8-32 x 1-1/4 in |
| Ring to Ring Center | 4 7/16 in |
| Resilient Ring Dia. | 2 1/2 in |
| Bolt Circle Dia. | 4 1/2 in |
| Lead Length | 60 in |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
