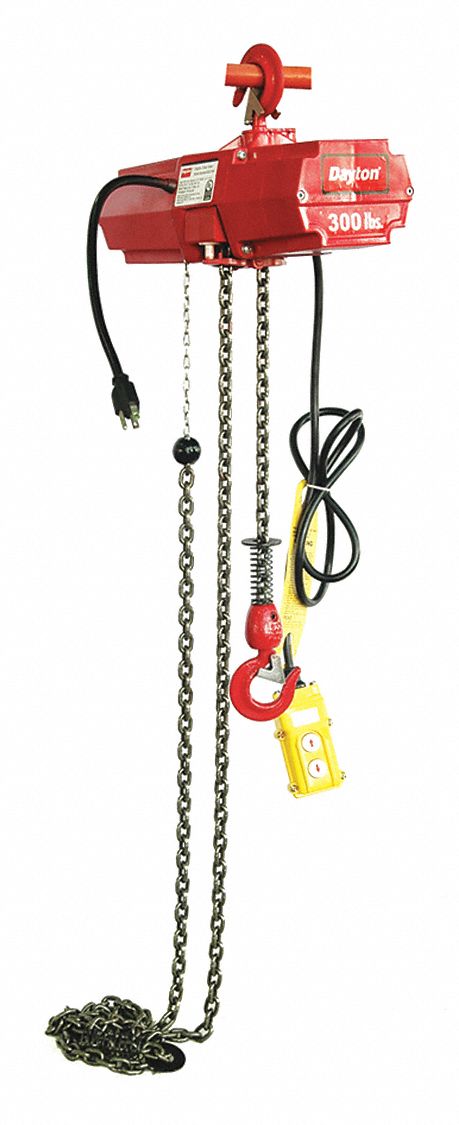

Portable Single-Phase Electric Chain Hoists is H2 Rated for light machine shop, fabricating, and service and maintenance work. Electric disc motor brakes stop and hold loads, even during power loss. Upper and lower limit switches prevent chain overtravel to help keep you safe when lifting large, heavy loads. Ideal for applications that require multiple lift points. Thermal overload protection helps extend hoist service life. Gears are enclosed in a sealed grease case. Hardened alloy steel chain.
| Electric Hoist Item | Chain Hoist |
| Load Capacity | 300 lb |
| Hoist Lift | 10 ft |
| Classification | H2 |
| Number of Speeds | 1 |
| Lift Speed | 14 fpm |
| Motor HP | 0.16 |
| Voltage | 115 |
| Phase | 1 |
| Min. Between Hooks | 14 1/2 in |
| Amps @ Low Volts | 3 A |
| Housing Depth | 4 5/8 in |
| Housing Length | 14 1/4 in |
| Housing Width | 6 in |
| Reeving | 1 |
| Brake | Electric Disc Motor |
| Clutch | Overload Limiting |
| Control | Push Button Pendant |
| Control Cord | 6 ft |
| Color | Red |
| Finish | Powder Coated |
| Hz | 60 |
| Lubrication | Grease |
| Thermal Protection | Yes |
| Standards | CUL and NEMA certified, Meets ASME/ANSI B30.16 Requirements |
| Hoist Mount | Hook Mounted - No Trolley |
