Availability : Usually Ships in 3 Business Days

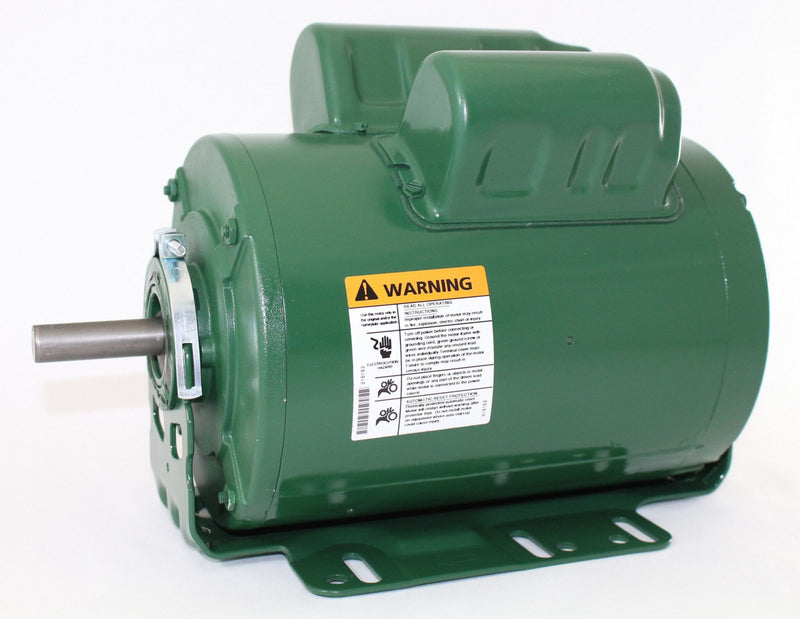

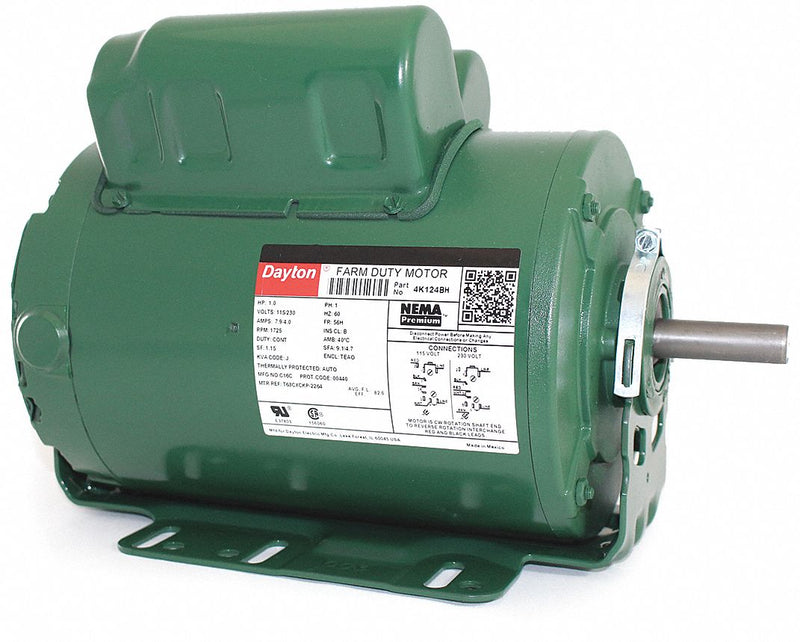

Keep your farm-duty fans moving with this capacitor-start, farm-duty motor. It features a totally enclosed, air-over enclosure to protect moving parts from dust and moisture. The motor mounts within the airflow of the fan to stay cool. It also features a gasketed capacitor cover, shaft key, and shaft slinger.
Item - Farm Duty Motors | Agricultural Fan Motor |
Motor Application | Farm Duty |
Motor Sub Application | Poultry/Livestock Direct Drive Fan |
Motor Design | Capacitor-Start/Run |
Motor Enclosure Design | Totally Enclosed Air-Over |
HP | 1 |
Nameplate RPM | 1725 |
Frame | 56H |
Motor Shaft Rotation | CW/CCW |
Voltage | 115/230 |
Full Load Amps | 7.9/4 |
Phase | 1 |
Hz | 60 |
Motor Mounting Type | Cradle Base |
Motor Mounting Position | Horizontal |
Motor Bearings | Ball |
Motor Frame Material | Rolled Steel |
Motor Thermal Protection | Auto |
Motor Service Factor | 1.15 |
Max. Ambient Temperature | 40 Degrees C |
Shaft Dia. | 5/8 in |
Shaft Length | 1 7/8 in |
Motor Shaft Design | Keyed |
Length Less Shaft | 10 1/2 in |
Overall Length | 12 3/8 in |
Ins. Class | B |
Capacitor Required | Included |
Duty | Continuous Air Over |
Nominal Efficiency | 82.6 % |
Includes | Gasketed Terminal Access Cover and Capacitor Cover, Shaft Key and Shaft Slinger |
Standards | CSA Certified (258501), UL Recognized (E37403) |
Item | Agricultural Fan Motor |
Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
