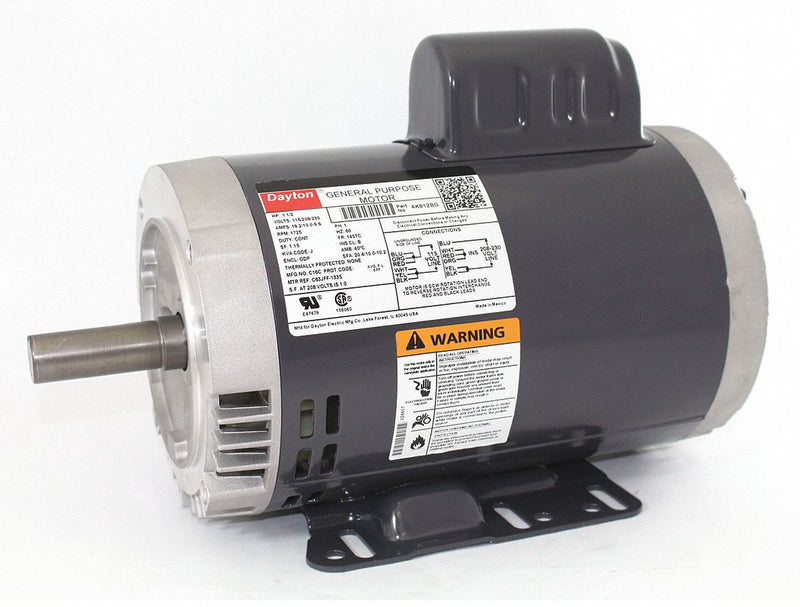

Use this motor in clean, dry, nonhazardous applications, including speed reducers, pumps, blowers, conveyors, and other equipment that mounts directly to a NEMA C-face motor.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 1/2 |
| Nameplate RPM | 1725 |
| Frame | 145TC |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 19.2/10-9.6 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 11 in |
| Overall Length | 13 1/4 in |
| Motor Shaft Design | Keyed |
| Standards | CSA Certified (258501), UL Component Recognized (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 74 % |
| Includes | 3/16 x 3/16 x 1 1/4 in Shaft Key |
| Manufacturers Warranty Length | 1 yr |
