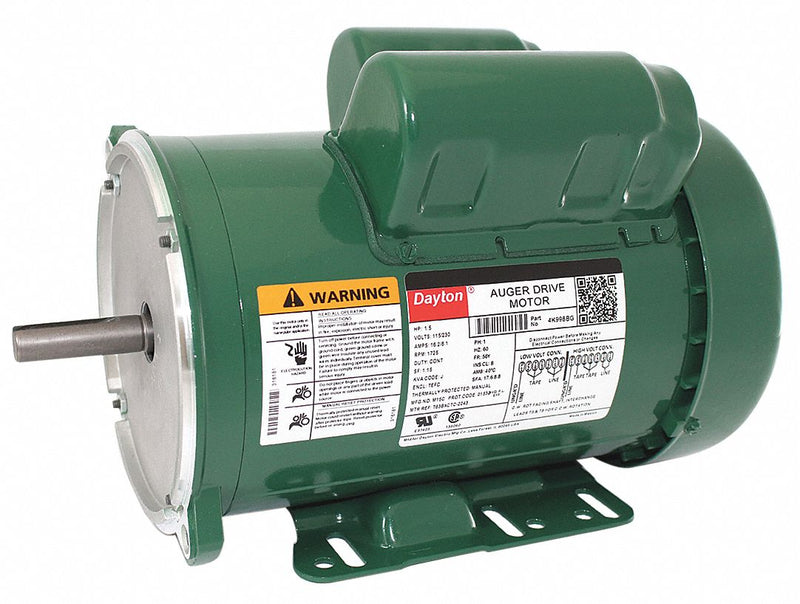

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.
| Item | Auger Drive Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Auger |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1-1/2 |
| Nameplate RPM | 1725 |
| Frame | 56Y |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/230 |
| Full Load Amps | 16.2/8.1 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Finish | Enamel |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1.15 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 12-1/16 |
| Overall Length | 13-15/16" |
| Ins. Class | B |
| RPM Range | 1701-1800 |
| Duty | Continuous |
| Standards | UL Component Recognition (E37403) and CSA Certification (258501) |
