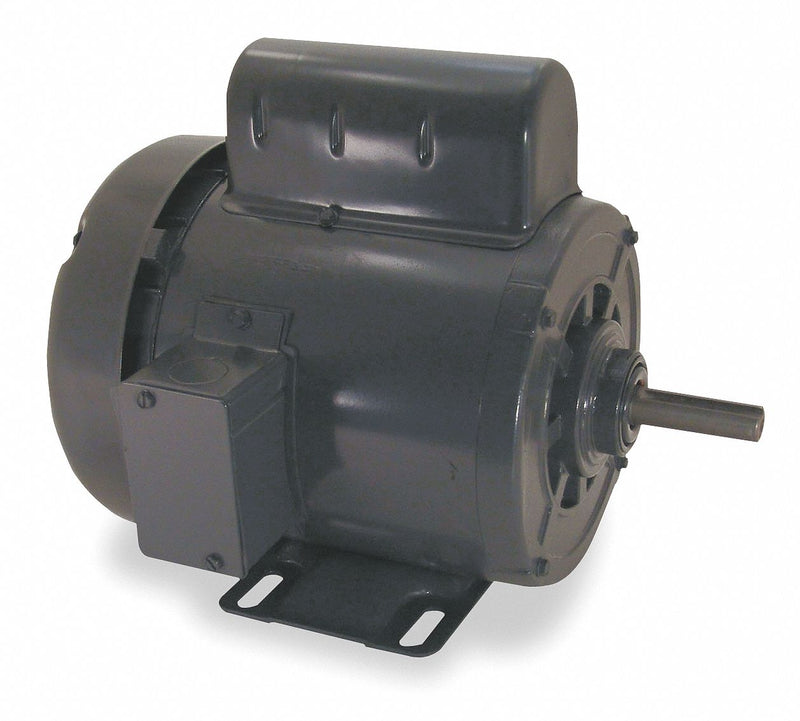

1-phase motor features start switch and windings designed for reliable operation in 50 Hz applications. Use this motor machinery, air compressors, conveyors, fans, blowers, machine tools, speed reducers, pumps, and industrial equipment in noncombustible environments.
| Item | 50 Hz Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/3 |
| No. of Speeds | 1 |
| Nameplate RPM | 1425 |
| Voltage | 110/220 |
| Hz | 50 |
| Phase | 1 |
| Full Load Amps | 6.2/3.1 |
| Frame | 56 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 9 1/4 in |
| Overall Length | 11 1/8 in |
| RPM Range | 1401-1500 |
| Voltage Compatibility | 110/220 50 Hz, 220 50 Hz |
