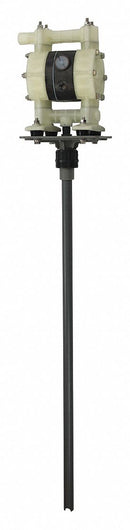

Dayton Air Operated Drum Pump, Basic Pump with Discharge Hose, For Container Type Drum - 53JU96

DaytonSKU: C2776693
MPN : 53JU96
Weight : 17.3 lb

filler

Price:
$732.52 $1,181.48

Availability : Usually Ships in 30 Business Days

Acid, base, and solvent pneumatic drum pumps are made with corrosion-resistant materials that withstand a range of acidic and basic chemical concentrations. They are used to dispense and transfer moderate to large volumes of substances and solutions in laboratories and chemical processing plants.,Pneumatic drum pumps (also called air-powered or air-operated barrel pumps) are motor-driven devices powered by a compressed air supply to draw out fluids from a container. They allow more precise flow control than electric drum pumps and generate higher flow rates than hand drum pumps to dispense or transfer moderate to large amounts of fluid. These air-operated transfer pumps connect to an adapter that allows the intake shaft of the pump to be mounted through the bung hole of a drum or other container. They're used for pumping fluids at manufacturing plants, construction sites, automotive shops, and other facilities with air compressors or compressed air systems.

ItemAir Operated Drum Pump
Pump Package TypeBasic Pump with Discharge Hose
Air Inlet Size1/4 in FNPT
Air Outlet Size3/8 in
For Container Size55 gal
For Container TypeDrum
Max. Flow Rate12.5 gpm
Max. Oil Flow12 gpm
Max. Viscosity15,000 cps
Discharge Connection TypeFNPT
Discharge Tube Outlet ID1/2 in
Discharge Tube Outlet OD3/4 in
Min. Air Pressure20 psi
Max. Air Pressure100 psi
Ratio1
Max. Head - Pumps231 ft
Max. Head Pressure100 psi
Max. Outlet Pressure100 psi
Max. Fluid Temp.180 Degrees F
Duty CycleContinuous
Seal MaterialSantoprene
Power SourceAir
Variable SpeedYes
Noise Level77.5 db
Pump Connection ID1/2 in
Pump Connection OD3/4 in
Pump Connection TypeFNPT
Includes Discharge HoseYes
Hose Inside Dia.1/2 in
Hose Outside Dia.3/4 in
Hose Length10 ft
Hose Cover MaterialPVC
Hose Tube MaterialPVC
Housing Material - PumpsPolypropylene
Includes Suction TubeYes
Suction Tube Length40 1/2 in
Suction Tube MaterialPVC
Suction Tube ID1/2 in
Suction Tube OD3/4 in
Includes NozzleNo
