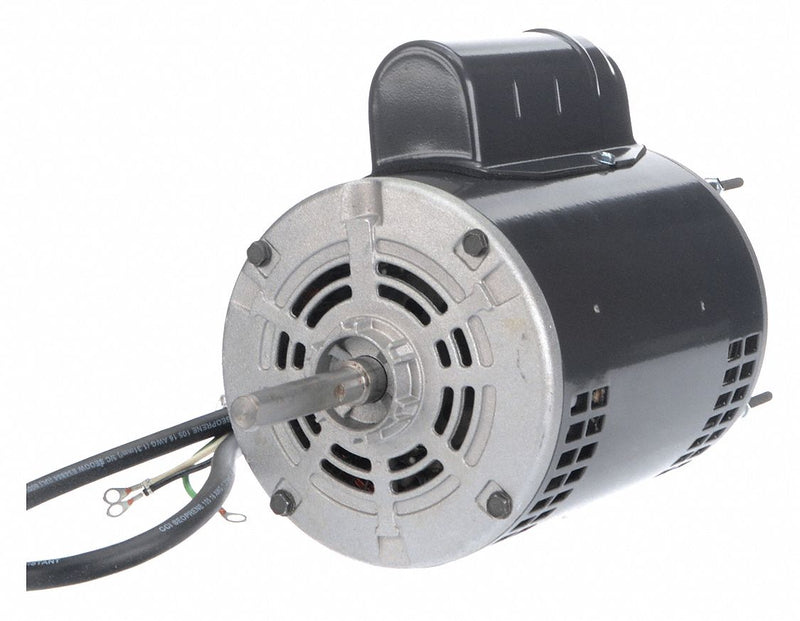

| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| HP | 3/4 |
| Nameplate RPM | 1725 |
| Voltage | 115/230 |
| Full Load Amps | 7/3.5 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48Z |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Body Dia. | 5 11/16 in |
| Length Less Shaft | 8 13/16 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/2 in |
| Motor Shaft Design | Flat |
| Capacitor Required | Included |
| Mounting Stud Location | Opposite Shaft End |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | #10-32 |
| Bolt Circle Dia. | 5 1/8 in |
| Standards | CSA Certified, UL Recognized |
| Application | Blowers, Fans and Air Circulators |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
