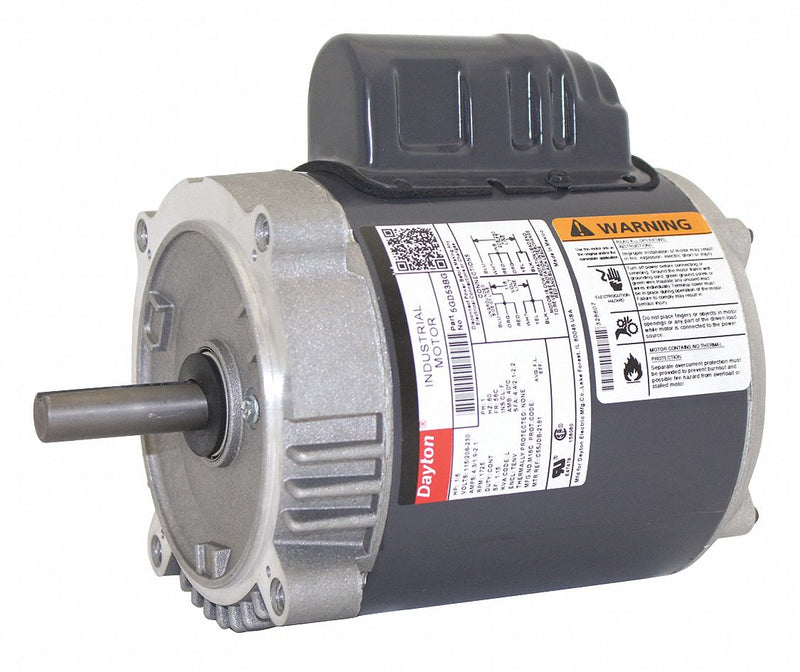

Suitable for use in dusty, dirty, nonhazardous environments, this motor can be used with speed reducers, pumps, blowers, conveyors, and other equipment that mounts directly to a NEMA C-face motor.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/6 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 4.3/1.9-2.1 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 7/16 in |
| Overall Length | 10 5/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA Certified (258501), UL Recognized (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 52.9 % |
| Includes | Conduit Box, Shaft Key, Water Slinger |
| Manufacturers Warranty Length | 1 yr |
