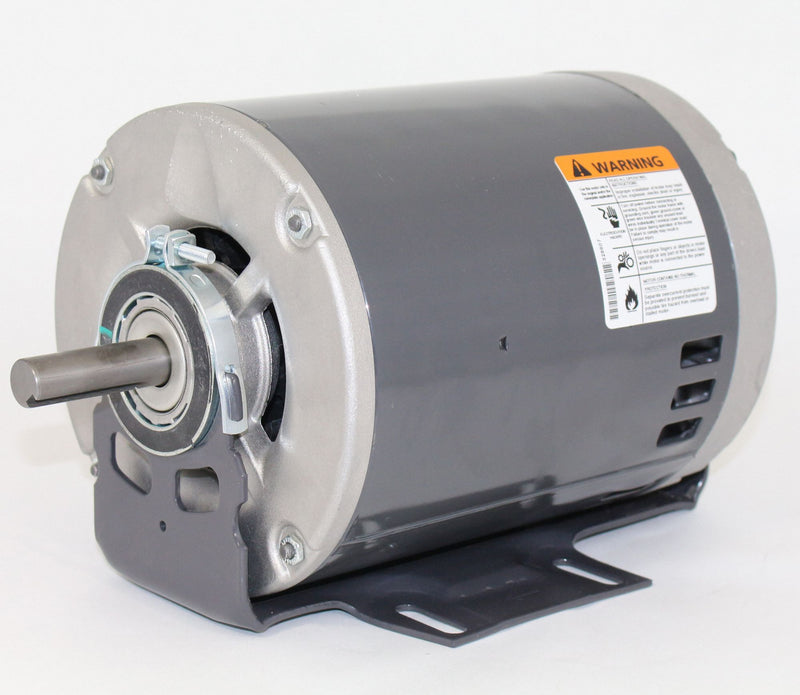

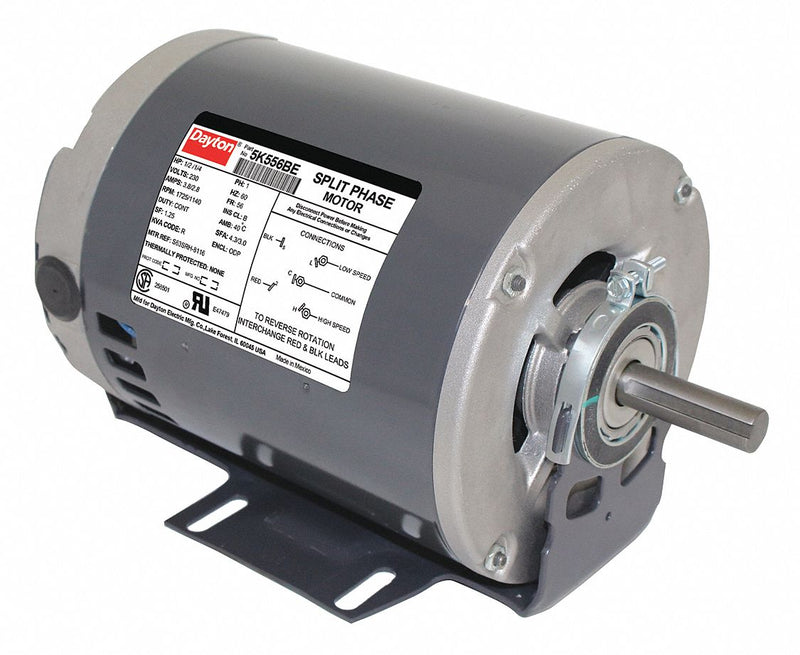

Use this motor in clean, dry, and nonhazardous applications, including fans, blowers, pumps, printing equipment, and other business machines.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/4, 1/2 |
| Nameplate RPM | 1725/1140 |
| Frame | 56 |
| Voltage | 230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 3.8/2.8 |
| No. of Speeds | 2 |
| Motor Mounting Type | Cradle Base |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 8 7/8 in |
| Overall Length | 10 13/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (258501), UL (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 63.7 % |
| Manufacturers Warranty Length | 1 yr |
