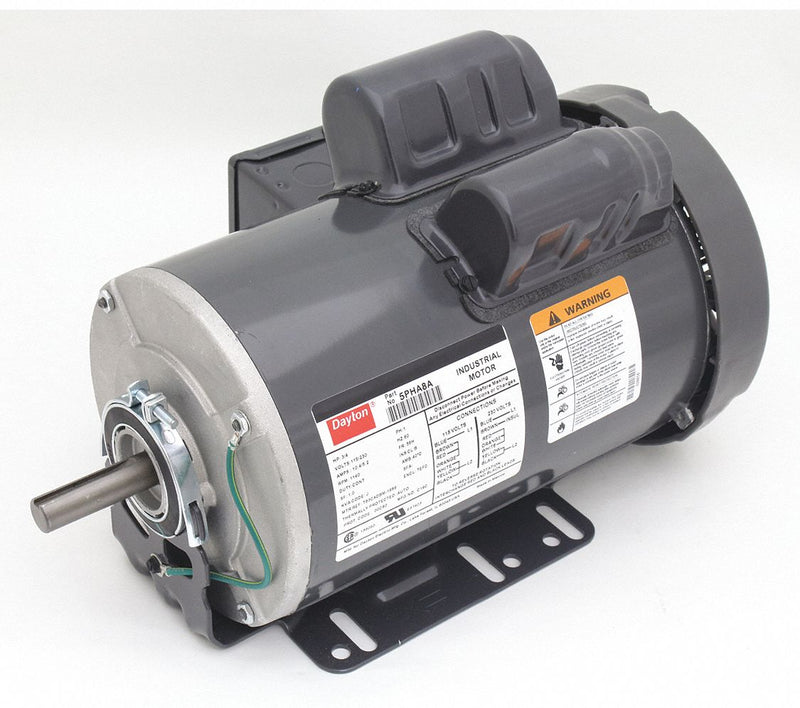

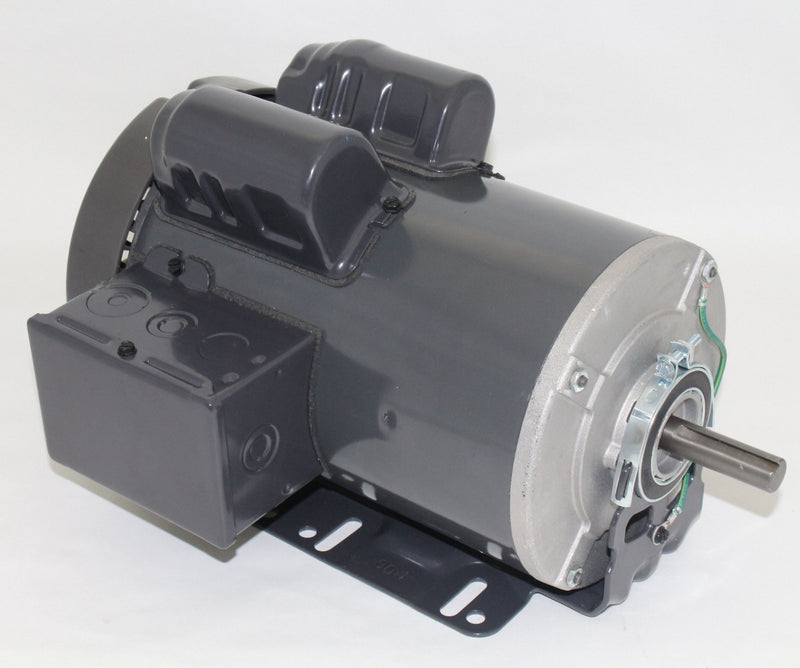

Totally enclosed motor is suitable for clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. In addition, it can be used for dusty, dirty, and nonhazardous environments.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3/4 |
| Nameplate RPM | 1140 |
| Frame | 56H |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 10.4/5.2 |
| No. of Speeds | 1 |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 12 5/16 in |
| Overall Length | 14 1/4 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (258501), UL (E37403) |
| Duty | Continuous |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 73.7 % |
| Manufacturers Warranty Length | 1 yr |
