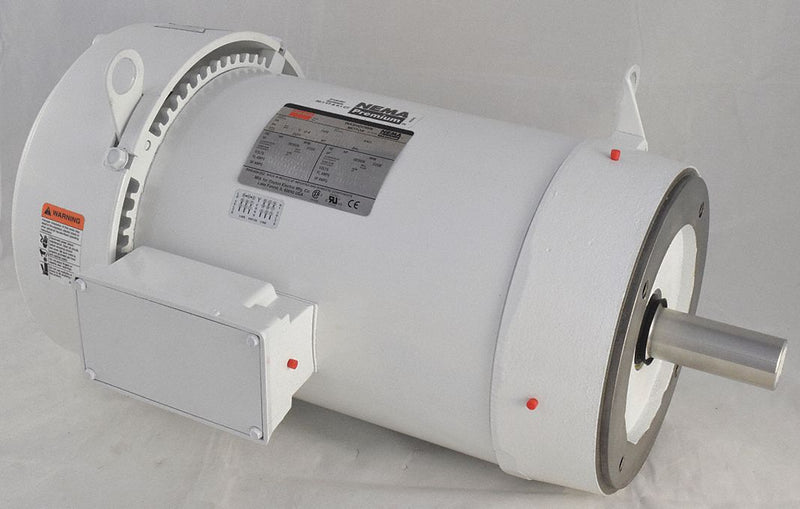

Dayton 7 1/2 HP Washdown Motor,3-Phase,3520 Nameplate RPM,230/460 Voltage,Frame 213TC - 5XAU9BG

DaytonSKU: C2775821
MPN : 5XAU9BG
Weight : 98.55 lb

filler

Price:
$3,800.06 $6,129.13

Availability : Usually Ships in 3 Business Days

This motor was designed to be used in the food processing industry, as it can better protect its internal areas from moisture or debris it may be exposed to.

ItemWashdown Motor
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP7 1/2
Nameplate RPM3520
Frame213TC
NEMA DesignB
Motor Shaft RotationCW/CCW
Voltage230/460
Full Load Amps17.4/8.7
Phase3
Hz60/50
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor BearingsBall
Motor Frame MaterialEpoxy Coated Rolled Steel
Motor Thermal ProtectionNone
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.1 3/8 in
Shaft Length3 1/8 in
Motor Shaft DesignKeyed
Body Dia.10 3/4 in
Length Less Shaft18 1/4 in
Overall Length21 3/8 in
Ins. ClassF
RPM Range3001-3600
DutyContinuous
Shaft Material303 Stainless Steel
Conduit BoxCast Aluminum with Buna-N Gasketed Cover
Drain Plugs(4) Shaft End, (4) Lead End, (2) In Conduit Box
EndshieldsCast Aluminum
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency91 %
CC NumberCC030A
ApplicationHigh Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Press
