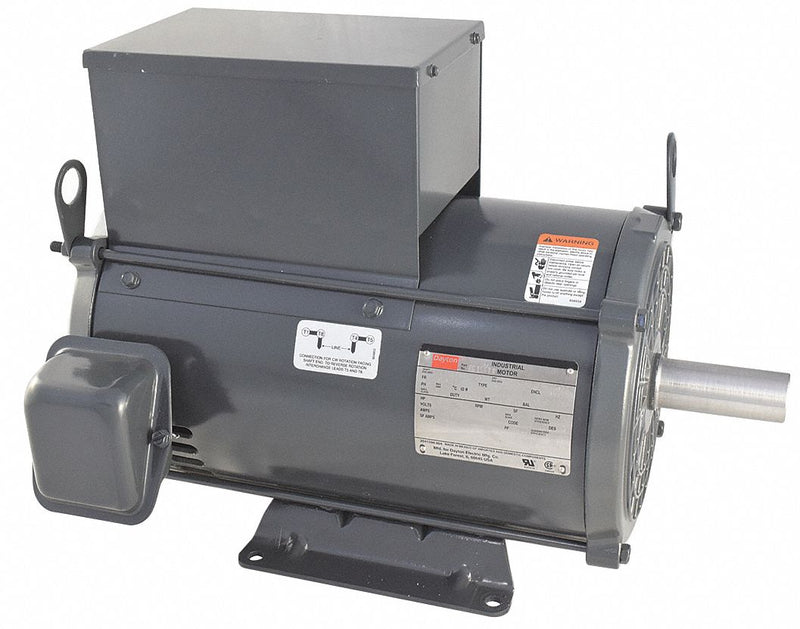

Featuring a side-mounted conduit box, this motor is for use in clean, dry, nonhazardous environments.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 10 |
| Nameplate RPM | 1740 |
| Frame | 215T |
| Voltage | 230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 42.2 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 3/8 in |
| Shaft Length | 3 3/8 in |
| Length Less Shaft | 16 1/2 in |
| Overall Length | 19 7/8 in |
| Motor Shaft Design | Keyed |
| Standards | CSA Certified (258525), UL Recognized (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 88.2 % |
| Includes | Shaft Key |
| Manufacturers Warranty Length | 1 yr |
