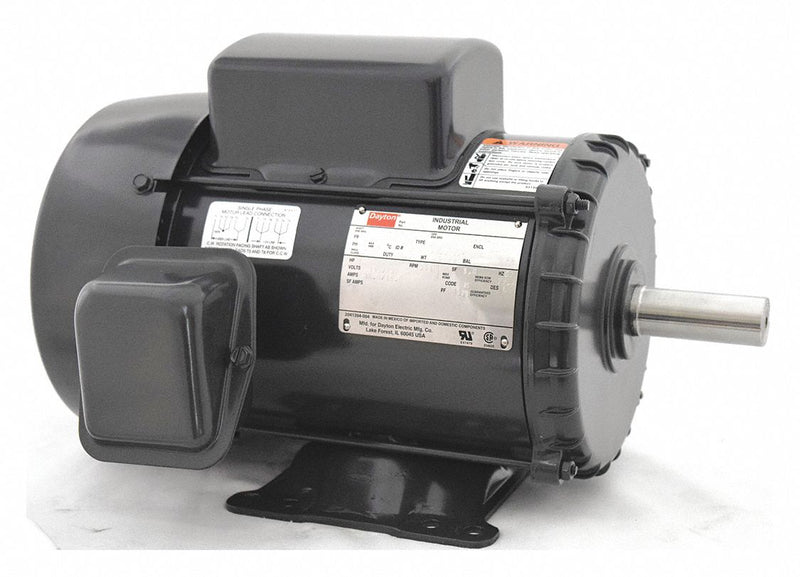

For use in dirty, dusty, and nonhazardous environments, this general purpose motor can be used in place of an open dripproof motor. UL Recognized and CSA Certified.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 3 |
| Nameplate RPM | 3540 |
| Frame | 182T |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 32/16 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 7/8 in |
| Length Less Shaft | 13 7/8 in |
| Overall Length | 16 5/8 in |
| Motor Shaft Design | Keyed |
| Standards | UL Recognized (E47479), CSA Certified (258525) |
| Duty | Continuous |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 79.2 % |
| Includes | Conduit Box |
| Manufacturers Warranty Length | 1 yr |
