Availability : Usually Ships in 3 Business Days

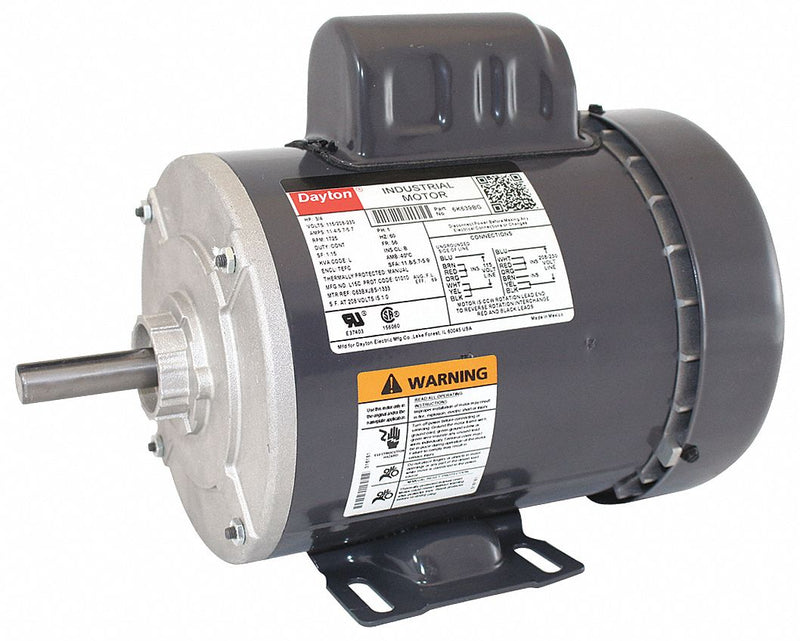

Capacitor-Start Base-Mount Motors,Max. ambient: 40C Rotation: CW/CCW Bearing: ball,UL Recognized and CSA Certified.,Totally Enclosed Fan-Cooled Motors,For use in dirty, dusty, and nonhazardous environments. Can be used in place of open dripproof motors.
Item | General Purpose Motor |
Motor Application | General Application |
Motor Design | Capacitor-Start |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 3/4 |
Nameplate RPM | 1725 |
Frame | 56 |
Voltage | 115/208-230 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 11.4/5.7-5.7 |
No. of Speeds | 1 |
Motor Mounting Type | Rigid Base |
Motor Mounting Position | All Angle |
Motor Thermal Protection | Manual |
Ins. Class | B |
Motor Service Factor | 1.15 |
Motor Bearings | Ball |
Motor Frame Material | Steel |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 5/8 in |
Shaft Length | 1 7/8 in |
Length Less Shaft | 10 in |
Overall Length | 11 7/8 in |
Motor Shaft Design | Keyed |
Standards | UL Recognized (E37403), CSA Certified (156060) |
Duty | Continuous |
Motor Efficiency Group | Standard Efficient |
Nominal Efficiency | 65 % |
Includes | Conduit Box |
Manufacturers Warranty Length | 1 yr |
