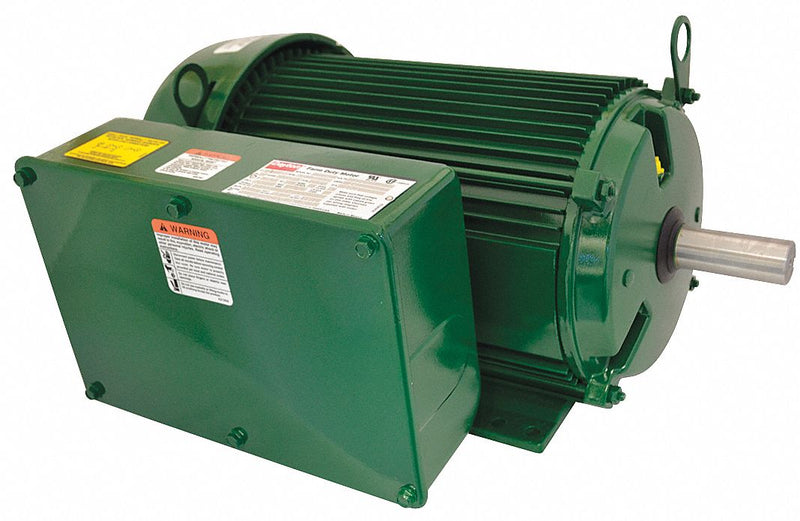

Keep your farm-duty fans moving with this capacitor-start, farm-duty motor. It features a totally enclosed, fan-cooled motor design to help keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. It also features ball bearings and a rolled steel frame for durability and long service life. Includes gasketed conduit box and shaft slinger.
| Item - Farm Duty Motors | Extra High Torque Farm Duty Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Extra High Torque |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 5 |
| Nameplate RPM | 1740 |
| Frame | 184T |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230 |
| Full Load Amps | 24 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Green |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1.15 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1 1/8 in |
| Shaft Length | 2 3/4 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 16 1/16 in |
| Overall Length | 18 13/16 in |
| Ins. Class | F |
| Capacitor Required | Included |
| Duty | Continuous |
| Nominal Efficiency | 77.9 % |
| Includes | Gasketed Conduit Box and Shaft Slinger, Shaft Key |
| Standards | CSA Certified (258525), UL Recognized (E47479) |
| Item | Extra High Torque Farm Duty Motor |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
