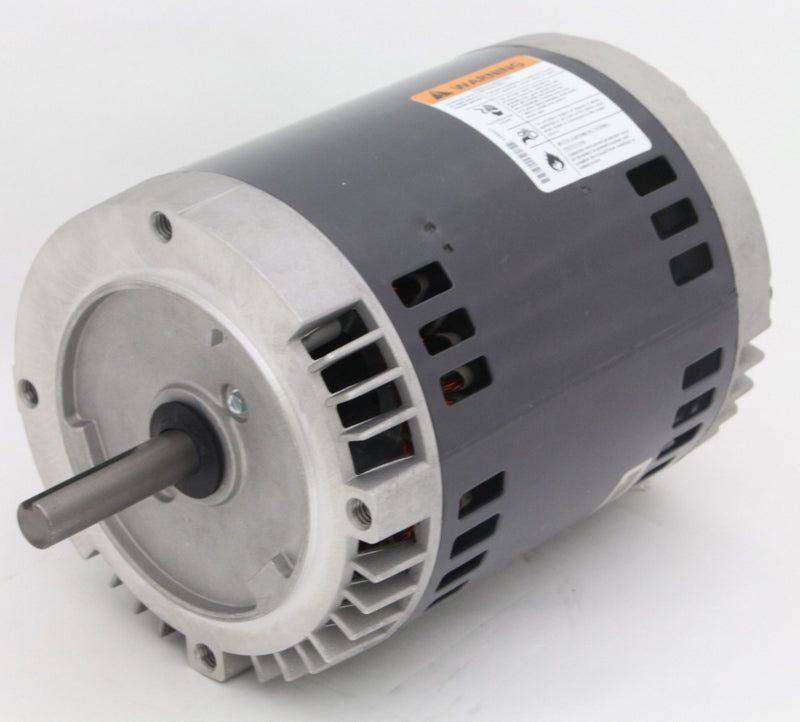

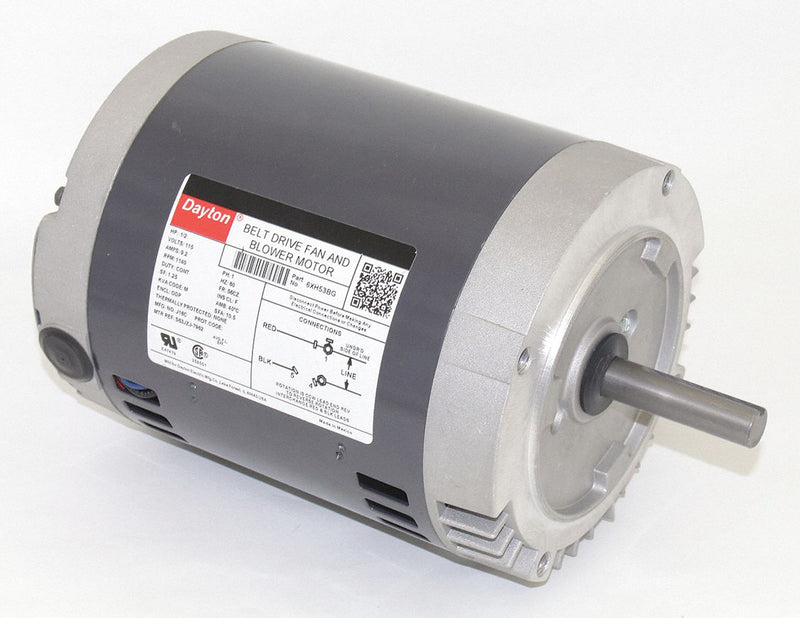

NEMA service factors up to 1.40 provide a reserve margin for applications where intermittent overloading or fluctuating (high/low) voltage conditions may occur. Provides direct replacement in many Jenn-Air and similar commercial kitchen exhaust ventilators. For use in exhaust ventilators in commercial cooking areas and other moderate-starting torque equipment that can be directly connected to a NEMA 56CZ face-mounted motor.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Split-Phase |
| HP | 1/2 |
| No. of Speeds | 1 |
| Nameplate RPM | 1140 |
| Voltage | 115 |
| Frame | 56CZ |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 9.2 |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 7/16 in |
| Length Less Shaft | 8 5/16 in |
| Overall Length | 10 3/4 in |
| Body Dia. | 6 1/2 in |
| Nominal Efficiency | 62.5 % |
| Duty | Continuous |
| Phase | 1 |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA Certified (258501), UL Recognized (E47479) |
| Includes | Shaft Key |
| Voltage Compatibility | 115, 120 |
