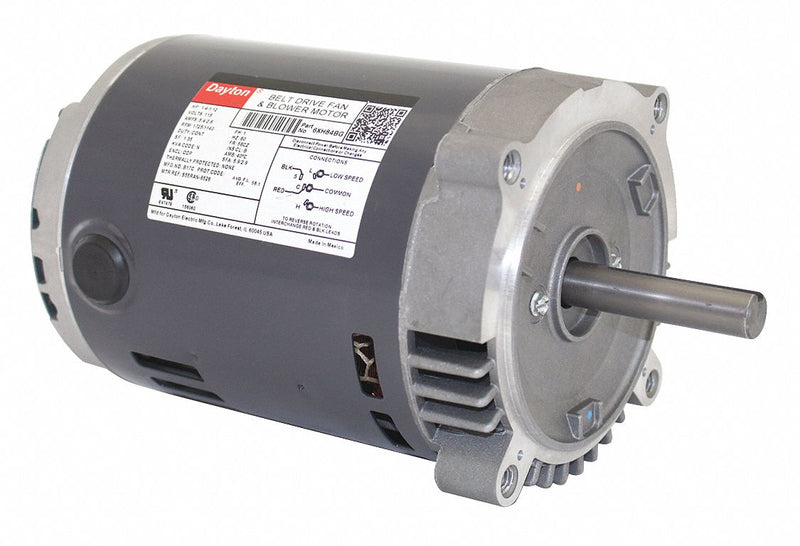

| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | Split-Phase |
| HP | 1/12, 1/4 |
| No. of Speeds | 2 |
| Nameplate RPM | 1725/1140 |
| Voltage | 115 |
| Frame | 56CZ |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Face |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 5.4/2.8 |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 7/16 in |
| Length Less Shaft | 1701-1800 |
| Duty | Continuous |
| Phase | 1 |
| Manufacturers Warranty Length | 1 yr |
| Standards | CSA Certified, UL Recognized |
| Voltage Compatibility | 115, 120 |
