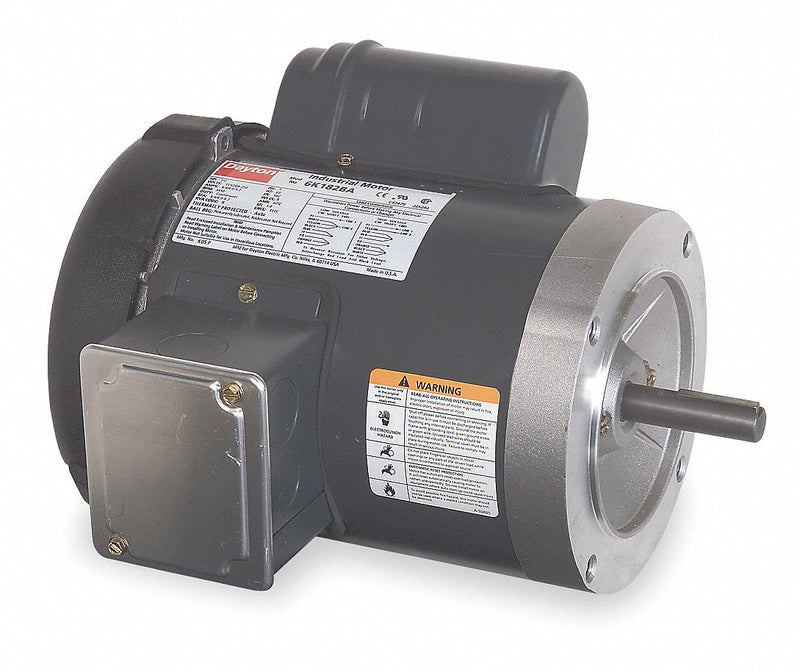

Suitable for use in dusty, dirty, nonhazardous environments, this motor can be used with speed reducers, pumps, blowers, conveyors, and other equipment that mounts directly to a NEMA C-face motor.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/4 |
| Nameplate RPM | 1140 |
| Frame | 56C |
| Voltage | 115/208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 5.6/2.7-2.8 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 9 5/16 in |
| Overall Length | 12 1/2 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (258501), UL (E47479) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 58.5 % |
| Manufacturers Warranty Length | 1 yr |
