115VAC Split-Phase Parallel-Shaft Gearmotors,Enclosure: open dripproof Gearcase: die-cast zinc Lubrication: grease filled Gears: cut steel and phenolic Bearings: porous bronze sleeve on case; ball on motor ball on case and motor Mounting: all-position 60 Hz Rotation: reversible Thermal protection: none Ambient: 40C UL and C-UL Recognized
| Item | AC Gearmotor |
| Gearmotor Type | AC Gearmotor |
| Gearmotor Voltage | 115V AC |
| Gearmotor Phase | 1 |
| Max. Torque | 100 in-lb |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Gearmotor Rotation | CW/CCW |
| Nameplate RPM | 120 RPM |
| Gearmotor Enclosure | Open Dripproof |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Brake Type | None |
| Length Less Shaft | 9 5/8 in |
| Hz | 60 Hz |
| Reversible Shaft Output | No |
| Overhung Load | 110 lb |
| Input HP | 1/4 hp |
| Gear Ratio | 1 |
| Full Load Amps | 3.9 |
| Insulation Class | B |
| Thermal Protection | None |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Type | Split-Phase |

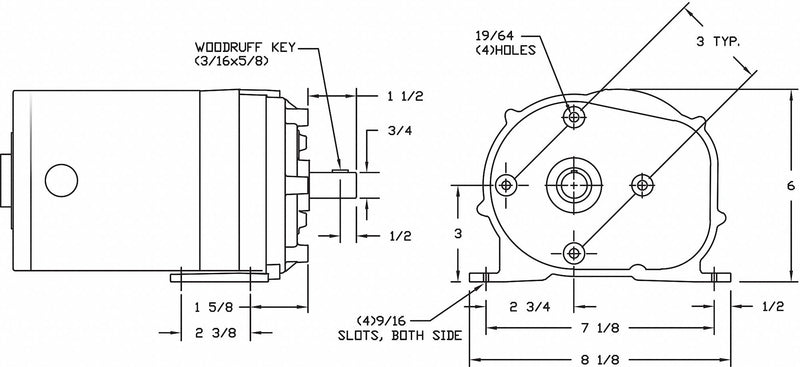

| Shaft Dia. (Dimension U) | 3/4 in |
| Shaft Length (Dimension V) | 1.5 in_x000D_ |
| Keyway Size Type | #605 Woodruff Key |
| Bearings | Porous Bronze Sleeve on Case, Ball on Motor |
| Lubrication | Grease Filled |
| Finish | Unpainted |
| Housing | Die Cast Zinc |
| Gear Case Material | Die Cast Zinc |
| Gears | Phenolic/Steel |
| Gear Material | Steel/Phenolic |
| Seals | Lip Type on Input and Output Shaft |
| Standards | C-UL Recognized, UL Recognized |
