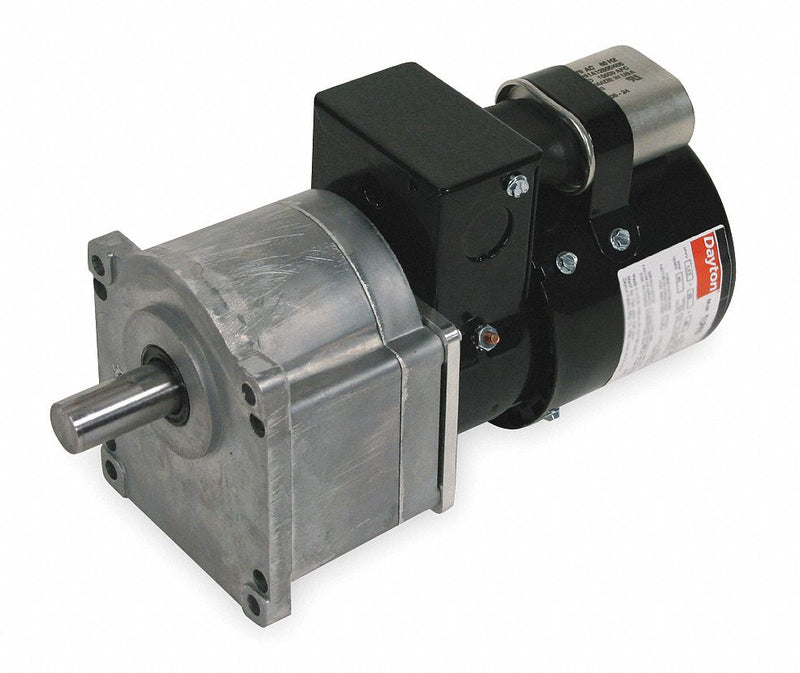

Dayton AC Gearmotor 115/230 Nameplate RPM 6 RPM Max. Torque 500.0 in-lb Enclosure TEFC - 1LPX6

DaytonSKU: C1661087
Weight : 13.05 lb


$616.76 $752.15

Availability : Usually Ships in 1-3 Business Days

AC Gearmotor; Gearmotor Type: AC Gearmotor; Gearmotor Voltage: 115/230V AC; Gearmotor Phase: 1; Max. Torque: 500 in-lb; Gearmotor Shaft Type: Single; Gearmotor Shaft Orientation: Parallel; Gearmotor Rotation: CW/CCW; Nameplate RPM: 6 RPM; Gearmotor Enclosure: Totally Enclosed Fan-Cooled; Gearmotor Mounting Position: All Angle; Gearmotor Brake Type: None; Length Less Shaft: 9 1/2 in; Hz: 60/50 Hz; Reversible Shaft Output: No; RPM @ 50 Hz: 5 RPM; Overhung Load: 300 lb; Input HP: 1/12 hp; Gear Ratio: 266:1; Full Load Amps: 1.2/0.63; Insulation Class: B; Thermal Protection: None; Max. Ambient Temp.: 40 Degrees C; Motor Type: PSC; Capacitor Required: Included; Shaft Dia. (Dimension U): 3/4 in; Shaft Length (Dimension V): 1.38 in; Keyway Size Type: 0.18 sq in x 1 in; Number of Brake Discs Required: 1; Bearings: Ball and Needle on Case, Ball on Motor; Lubrication: Grease Filled; Finish: Unpainted; Housing: Die Cast Aluminum; Gear Case Material: Die Cast Aluminum; Gears: Hardened Steel, 1st Stage Helical, Subsequent Stages Spur; Gear Material: Hardened Steel; Gear Type: Helical First Stage/Subsequent Stages Spur; Seals: Lip Type on Input and Output Shaft; Standards: C-UL Recognized, UL Recognized

ItemAC Gearmotor
Gearmotor TypeAC Gearmotor
Gearmotor Voltage115/230V AC
Gearmotor Phase1
Max. Torque500 in-lb
Gearmotor Shaft TypeSingle
Gearmotor Shaft OrientationParallel
Gearmotor RotationCW/CCW
Nameplate RPM6 RPM
Gearmotor EnclosureTotally Enclosed Fan-Cooled
Gearmotor Mounting PositionAll Angle
Gearmotor Brake TypeNone
Length Less Shaft9 1/2 in
Hz60/50 Hz
Reversible Shaft OutputNo
RPM @ 50 Hz5 RPM
Overhung Load300 lb
Input HP1/12 hp
Gear Ratio1
Full Load Amps1.2/0.63
Insulation ClassB
Thermal ProtectionNone
Max. Ambient Temp.40 Degrees C
Motor TypePSC
Capacitor RequiredIncluded
Shaft Dia. (Dimension U)3/4 in
Shaft Length (Dimension V)1.38 in
Keyway Size Type0.18 sq in x 1 in
Number of Brake Discs Required1
BearingsBall and Needle on Case, Ball on Motor
LubricationGrease Filled
HousingDie Cast Aluminum
Gear Case MaterialDie Cast Aluminum
GearsHardened Steel, 1st Stage Helical, Subsequent Stages Spur
Gear MaterialHardened Steel
Gear TypeHelical Firs
