Dayton AC Gearmotor 115 Nameplate RPM 60 RPM Max. Torque 200.0 in-lb Enclosure ODP - 1LPP2

DaytonSKU: C1661063
Weight : 20.0 lb


$549.26 $669.83

Availability : Usually Ships in 1-3 Business Days

115VAC Split-Phase Parallel-Shaft Gearmotors,Enclosure: open dripproof Gearcase: die-cast zinc Lubrication: grease filled Gears: cut steel and phenolic Bearings: porous bronze sleeve on case; ball on motor ball on case and motor Mounting: all-position 60 Hz Rotation: reversible Thermal protection: none Ambient: 40C UL and C-UL Recognized

ItemAC Gearmotor
Gearmotor TypeAC Gearmotor
Gearmotor Voltage115V AC
Gearmotor Phase1
Max. Torque200 in-lb
Gearmotor Shaft TypeSingle
Gearmotor Shaft OrientationParallel
Gearmotor RotationCW/CCW
Nameplate RPM60 RPM
Gearmotor EnclosureOpen Dripproof
Gearmotor Mounting PositionAll Angle
Gearmotor Brake TypeNone

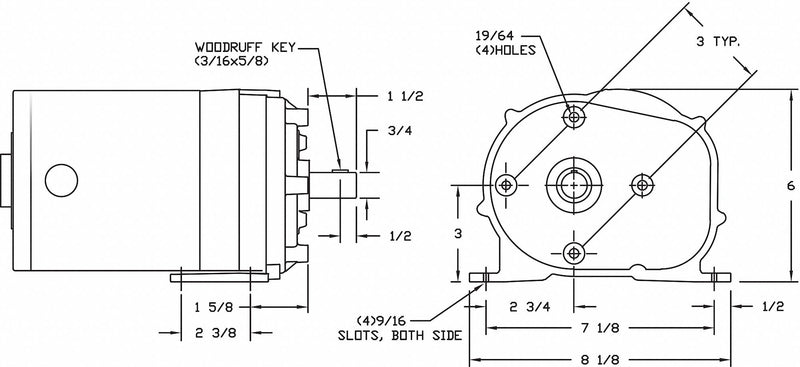

Length Less Shaft9 5/8 in
Hz60 Hz
Reversible Shaft OutputNo
Overhung Load190 lb
Input HP1/4 hp
Gear Ratio1
Full Load Amps3.9
Insulation ClassB
Thermal ProtectionNone
Max. Ambient Temp.40 Degrees C
Motor TypeSplit-Phase
Shaft Dia. (Dimension U)3/4 in
Shaft Length (Dimension V)1.5 in_x000D_
Keyway Size Type#605 Woodruff Key
BearingsPorous Bronze Sleeve on Case, Ball on Motor
LubricationGrease Filled
HousingDie Cast Zinc
Gear Case MaterialDie Cast Zinc
Gear MaterialSteel/Phenolic
SealsLip Type on Input and Output Shaft
StandardsC-UL Recognized, UL Recognized
