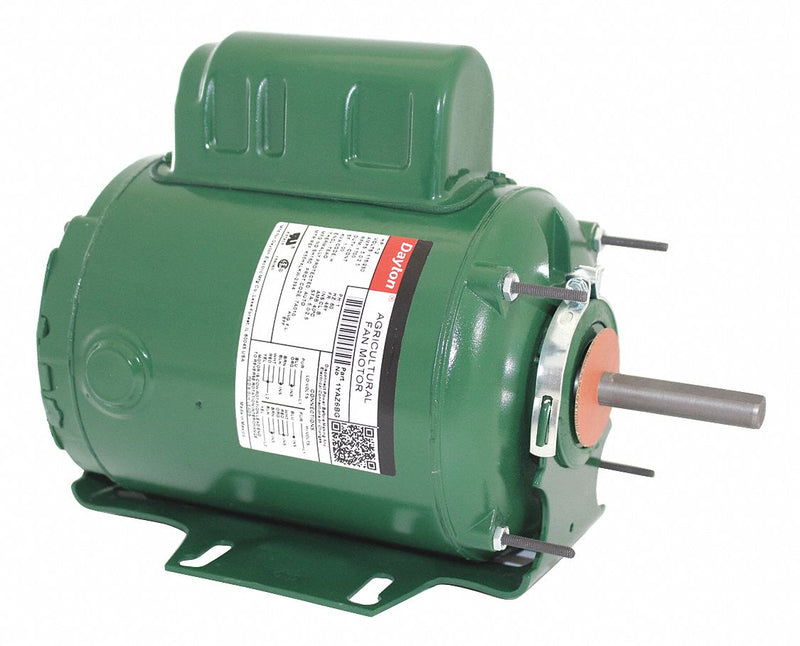

Dayton 1/2 HP Agricultural Fan Motor,Permanent Split Capacitor,1700 Nameplate RPM,115/230 Voltage - 1YAZ6BG

DaytonSKU: C1546997
MPN : 1YAZ6BG
Weight : 23.63 lb
filler

Price:
$302.39 $368.77

Availability : Usually Ships in 3-5 Business Days

Voltage, frequency, and phase of the power supply must correspond to that shown on the motor nameplate, since low voltage can reduce performance and cause overheating.

Item - Farm Duty MotorsAgricultural Fan Motor
Motor ApplicationFarm Duty
Motor Sub ApplicationPoultry/Livestock Direct Drive Fan
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/2
Nameplate RPM1700
Frame48YZ
Motor Shaft RotationCW/CCW
Voltage115/230
Full Load Amps5/2.5
Phase1
Hz60
Motor Mounting TypeCradle Base
Motor Mounting PositionHorizontal
Motor BearingsBall
Motor Frame MaterialRolled Steel
FinishGray
Motor Thermal ProtectionAuto
Motor Service Factor1
Max. Ambient Temperature40 Degrees C
Shaft Dia.1/2 in
Shaft Length2 1/2 in
Motor Shaft DesignDouble-Flat
Length Less Shaft8 7/16 in
Overall Length10 15/16 in
Ins. ClassB
Capacitor RequiredIncluded
DutyContinuous Air Over
Nominal Efficiency70.8 %
Includes5/8 in Shaft Adapter, Extended Thru Bolts, Gasketed Capacitor Cover, Shaft Key, Shaft Slinger
StandardsCSA Certified (258501), UL Recognized (E37403)
ItemAgricultural Fan Motor
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
