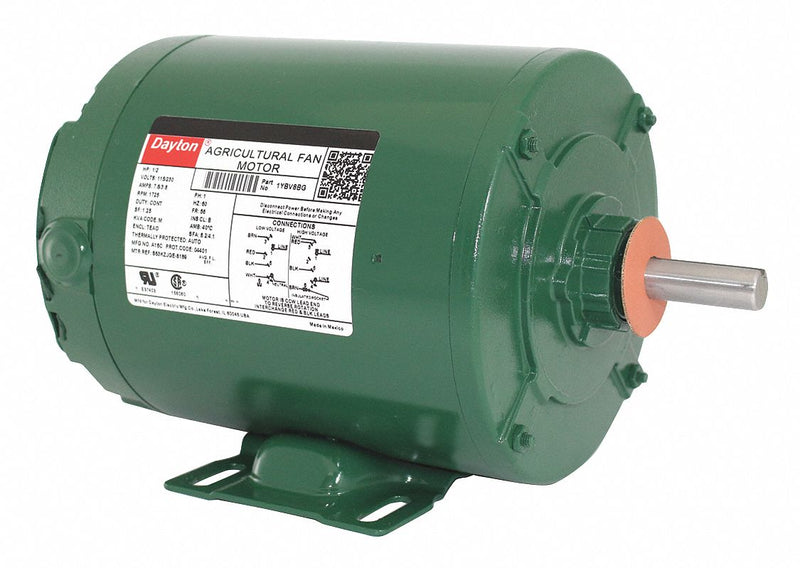

Dayton 1/2 HP Agricultural Fan Motor,Split-Phase,1725 Nameplate RPM,115/230 Voltage,Frame 56 - 1YBV8BG

DaytonSKU: C1547018
MPN : 1YBV8BG
Weight : 25.57 lb
filler

Price:
$248.95 $303.60

Availability : Usually Ships in 3-5 Business Days

For use in high-torque installations, such as conveyors, silo unloaders, barn cleaners, compressors, and manure pumps, this motor is designed to be durable and powerful. The high-torque design enables it to start under heavy load conditions. A capacitor cover, gasketed conduit box, and rubber boot over the manual protector reset button help seal the motor against weather and contaminants. Shaft slinger included. The totally enclosed, fan-cooled motor design also helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor.

Item - Farm Duty MotorsAgricultural Fan Motor
Motor ApplicationFarm Duty
Motor Sub ApplicationPoultry/Livestock Belt Drive Fan
Motor DesignSplit-Phase
Motor Enclosure DesignTotally Enclosed Air-Over
HP1/2
Nameplate RPM1725
Frame56
Motor Shaft RotationCW/CCW
Voltage115/230
Full Load Amps7.6/3.8
Phase1
Hz60
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor BearingsBall
Motor Frame MaterialRolled Steel
FinishFarm Duty Green
Motor Thermal ProtectionAuto
Motor Service Factor1.25
Max. Ambient Temperature40 Degrees C
Shaft Dia.5/8 in
Shaft Length1 15/16 in
Motor Shaft DesignKeyed
Length Less Shaft8 11/16 in
Overall Length10 5/8 in
Ins. ClassB
DutyContinuous Air Over
Nominal Efficiency68.7 %
IncludesGasketed Wiring Compartment Cover, Shaft Key, Shaft Slinger
StandardsCSA Certified (258501), UL Recognized (E37403)
ItemAgricultural Fan Motor
Voltage Compatibility115, 115/230, 120, 120/240, 230, 240
