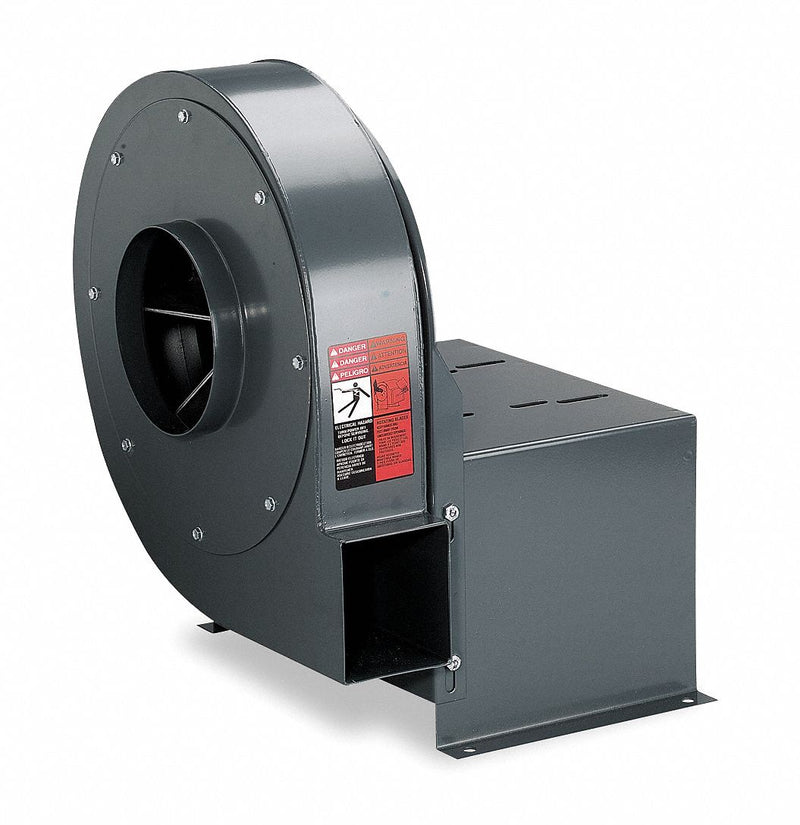

Use this 8-position blower in small-ducted dust exhaust systems and wherever dust collection bags are necessary. Designed with bottom discharge. Paddle-type, self-cleaning, die-cast wheels have CW rotation. Floor-mount vibration isolators are recommended. Not for use in hazardous locations.
| Item | High Pressure Blower |
| Type | Less Motor |
| Wheel Dia. (In.) | 13 1/2 in |
| Max. Inlet Temp. (Deg. F) | 180 Degrees F |
| Max. Ambient Temp. (F) | 104 Degrees F |
| Height (In.) | 23 1/8 in |
| Width (In.) | 22 3/8 in |
| Depth (In.) | 18 7/8 in |
| Inlet Dia. (In.) | 8 in |
| Discharge Height (In.) | 7 1/8 in |
| Discharge Width (In.) | 5 3/4 in |
| Wheel Width (In.) | 4 3/8 in |
| Wheel Bore (In.) | 1 1/8 in |
| Housing Material | Steel |
| Housing Finish | Gray Polyester Epoxy |
| Wheel Material | Aluminum |
| Agency Compliance | AMCA AIR |

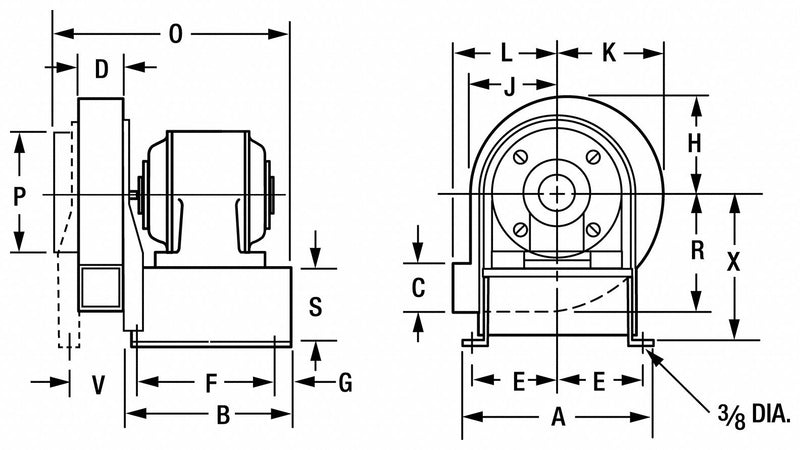

| Dimension A (In.) | 17 5/8 in |
| Dimension B (In.) | 11 1/4 in |
| Dimension C (In.) | 7 1/8 in |
| Dimension D (In.) | 5 3/4 in |
| Dimension E (In.) | 8 in |
| Dimension F (In.) | 9 9/16 in |
| Dimension G (In.) | 1 in |
| Dimension H (In.) | 10 1/2 in |
| Dimension J (In.) | 9 5/8 in |
| Dimension L (In.) | 11 in |
| Dimension R (In.) | 11 1/2 in |
| Dimension K (In.) | 11 3/8 in |
| Dimension O (In.) | 18 7/8 in |
| Dimension P (In.) | 8 in |
| Dimension S (In.) | 8 1/8 in |
| Dimension V (In.) | 7 1/4 in |
| Dimension X (In.) | 12 5/8 in |
