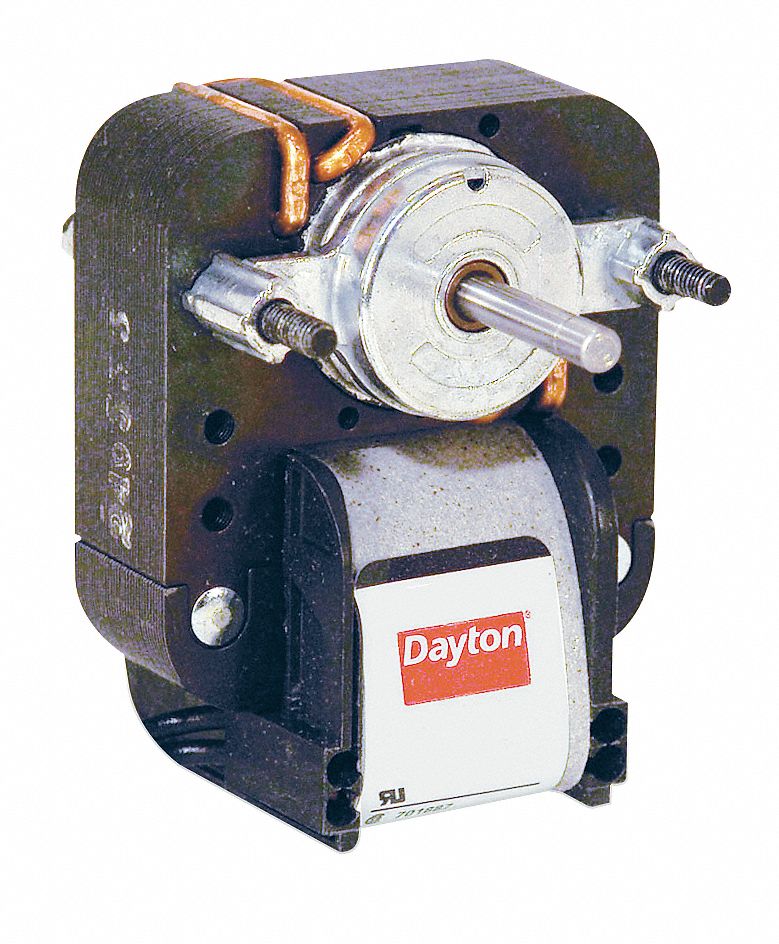

Dayton 1/500 HP C-Frame Motor, Shaded Pole, 3000 RPM, 115 Voltage,Frame Non-Standard - 4M067E

DaytonSKU: C1561218
MPN : 4M067E
Weight : 1.0 lb

filler

Price:
$26.40 $32.20

Availability : Usually Ships in 1-3 Business Days

This DAYTON C-frame motor is mechanically reversible by just inverting the rotor. Model is ideal for use in small fans and blowers found in bathroom ventilators, range hoods, electric heaters, hair dryers, slide projectors, air cleaners, humidifiers, and refrigeration equipment. Mounting: two #8-32 studs at shaft end, and mounting holes on each side of the stator, 1-7/8" OC.

ItemC-Frame Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
HP1/500
No. of Speeds1
Nameplate RPM3000
FrameNon-Standard
Voltage115
Hz60
Phase1
Full Load Amps0.26
Motor Mounting TypeStud
Motor Thermal ProtectionImpedance with One-Shot Backup
Ins. ClassB
Motor Service Factor1
Motor BearingsSleeve
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCWSE
Length Less Shaft1 1/2 in
Shaft Dia.3/16 in
Shaft Length1 in
Stack Size3/8 in
Stud Quantity2
Stud Size#8-32
Mounting Stud LocationShaft End
Mounting HolesEach Side of Stator
O.C. Mounting1 7/8 in
Cord Length12 in
StandardsCSA Certified (701887), UL Recognized (E37403/E40077/E47479)
RPM Range1801-3000
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240
