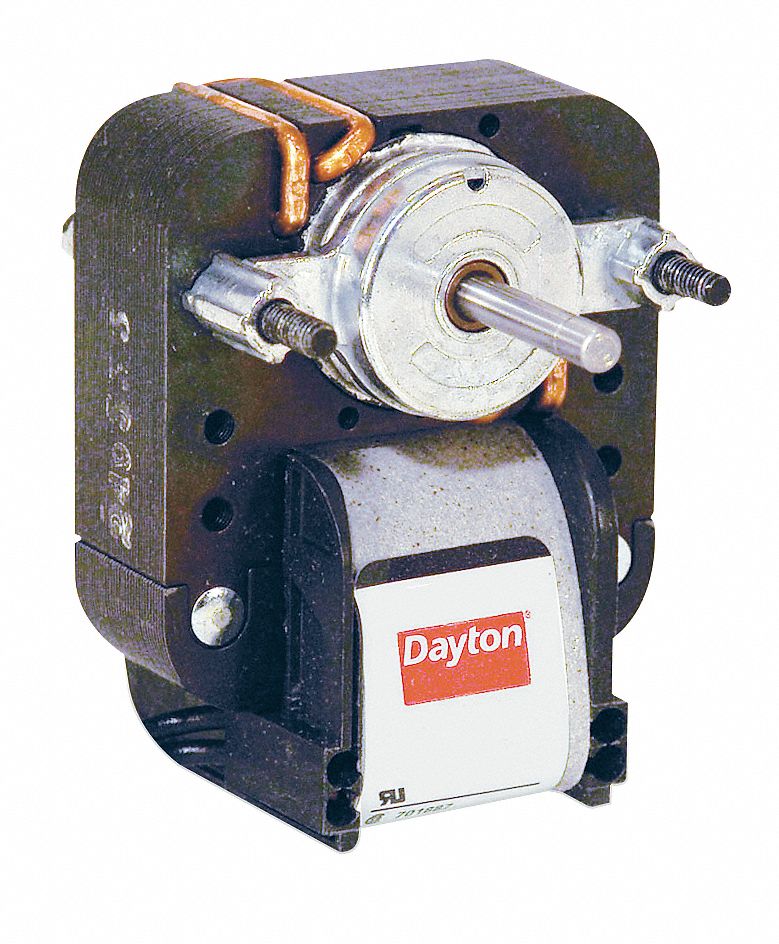

Dayton 1/20 HP C-Frame Motor, Shaded Pole, 3000 RPM, 120 Voltage,Frame Non-Standard - 5M064E

DaytonSKU: C1563882
MPN : 5M064E
Weight : 3.4 lb

filler

Price:
$69.56 $112.19

Availability : Usually Ships in 54 Business Days

This DAYTON C-frame motor is mechanically reversible by just inverting the rotor. Model is ideal for use in small fans and blowers found in bathroom ventilators, range hoods, electric heaters, hair dryers, slide projectors, air cleaners, humidifiers, and refrigeration equipment. Mounting: two #8-32 studs at shaft end, and mounting holes on each side of the stator, 1-7/8"" OC.

ItemC-Frame Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
HP1/20
No. of Speeds1
Nameplate RPM3000
FrameNon-Standard
Voltage120
Hz60
Phase1
Full Load Amps2.8
Motor Mounting TypeStud
Motor Thermal ProtectionOne-Shot
Ins. ClassB
Motor Service Factor1
Motor BearingsSleeve
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCWSE
Length Less Shaft3 1/8 in
Shaft Dia.1/4 in
Shaft Length1 in
Stack Size2 in
Stud Quantity2
Stud Size#8-32
Mounting Stud LocationShaft End
Mounting HolesOpposite Shaft End
O.C. Mounting1 7/8 in
Cord Length12 in
StandardsCSA Certified (701887), UL Recognized (E37403/E40077/E47479)
RPM Range1801-3000
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240
