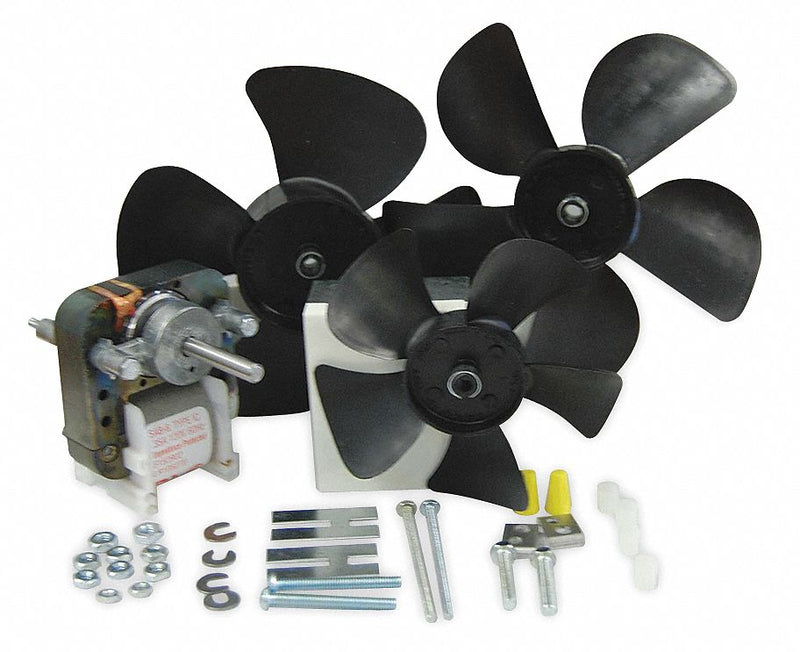

Includes 4", 5-1/2", and 5-9/16" dia. fan blades, mounting hardware, and mounting clips to duplicate OEM mounts.
| Item | C-Frame Motor Kit |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/150 |
| No. of Speeds | 1 |
| Nameplate RPM | 3000 |
| Frame | Non-Standard |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 0.35 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Impedance |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 1/4 in |
| Shaft Length | 1 3/8 in |
| Stack Size | 5/8 in |
| Stud Quantity | 2 |
| Mounting Stud Location | Opposite Shaft End |
| Mounting Holes | 4 |
| O.C. Mounting | 1 7/8 in |
| Duty | Continuous |
| Cord Length | 9 in |
| Standards | CSA Certified (701603), UL Recognized (E40077) |
| Includes | (2) H-Brackets, (4) Bushings and (3) Fan Blades |
| RPM Range | 1801-3000 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
