Kit can be used to replace 3.3", 3.5", and 4" dia. motors.
| Item | C-Frame Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/135 |
| No. of Speeds | 1 |
| Nameplate RPM | 3000 |
| Frame | Non-Standard |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 0.35 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Impedance |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 3/16 in |
| Shaft Length | 1 3/8 in |
| O.C. Mounting | 1 7/8 in |
| Duty | Continuous |
| Cord Length | 12 in |
| Standards | CSA Certified (701603), UL Recognized (E40077) |

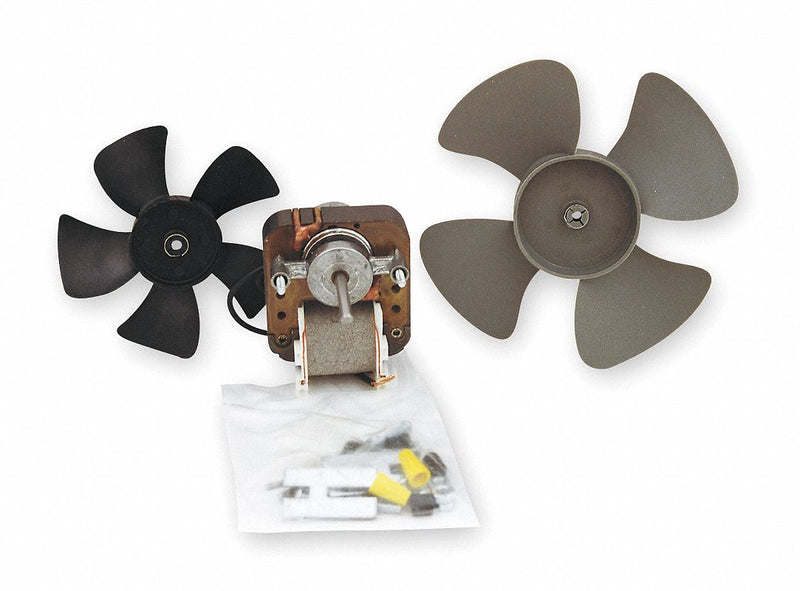

| Includes | 4 and 5-1/2 in fan blades, H-brackets, Hub Adapter, Screws, Washers and Wire Nuts |
| RPM Range | 1801-3000 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
