Availability : Usually Ships in 7-10 Business Days

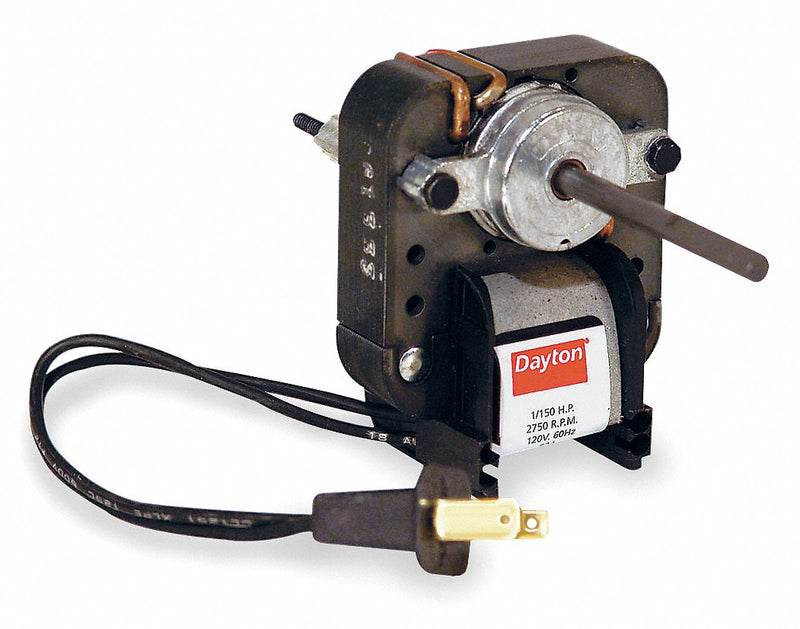

This DAYTON C-frame motor is mechanically reversible by just inverting the rotor. Model is ideal for use in small fans and blowers found in bathroom ventilators, range hoods, electric heaters, hair dryers, slide projectors, air cleaners, humidifiers, and refrigeration equipment.,Mounting: two #8-32 studs on 1-7/8" OC,OEM replacement with 2-prong plug
Item | C-Frame Motor |
Motor Application | HVAC/R |
Motor Sub Application | Direct Drive Fan/Blower |
Motor Design | Shaded Pole |
Motor Enclosure Design | Open Air-Over |
HP | 1/150 |
No. of Speeds | 1 |
Nameplate RPM | 2850 |
Frame | Non-Standard |
Voltage | 120 |
Hz | 60 |
Phase | 1 |
Full Load Amps | 0.61 |
Motor Mounting Type | Stud |
Motor Thermal Protection | Impedance with One-Shot Backup |
Ins. Class | B |
Motor Service Factor | 1 |
Motor Bearings | Sleeve |
Ambient Temperature | 40 Degrees C |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CWSE |
Length Less Shaft | 1 9/16 in |
Shaft Dia. | 3/16 in |
Shaft Length | 1 5/16 in |
Stack Size | 5/8 in |
Stud Quantity | 2 |
Stud Size | #6-32 |
Mounting Stud Location | Opposite Shaft End |
O.C. Mounting | 1 7/8 in |
Cord Length | 5 in |
Plug Type | 2 Prong Non-Polarized |
Standards | CSA Certified (701887), UL Recognized (E47479) |
RPM Range | 1801-3000 |
Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
