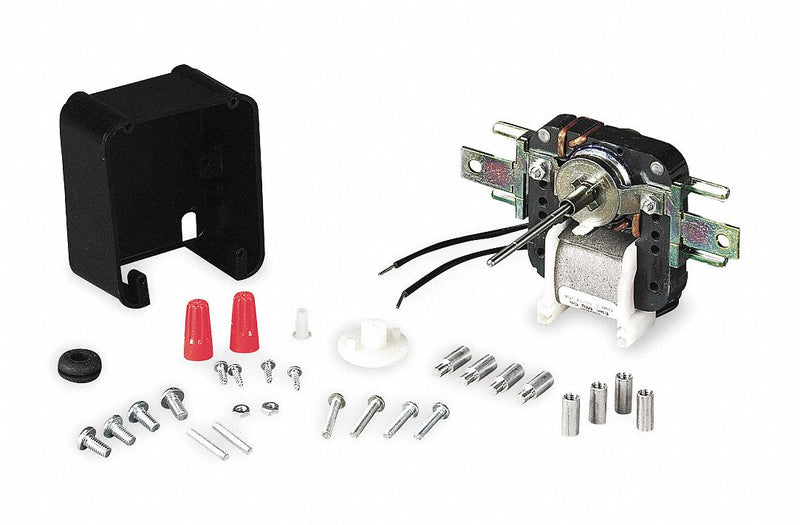

This DAYTON C-frame motor kit can be used to replace equivalent OEM motors, including GEM EM-240 Series, MARS #90999, SUPCO #SM-999, and Acme-Miami AM-4240 Series C-frame with 3"" overall height.
| Item | C-Frame Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/200 |
| No. of Speeds | 1 |
| Nameplate RPM | 3000 |
| Frame | Non-Standard |
| Voltage | 120 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 0.26 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Impedance with One-Shot Backup |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CWSE |
| Length Less Shaft | 2 5/16 in |
| Shaft Dia. | 1/8 in |
| Shaft Length | 2 1/2 in |
| Stack Size | 1/2 in |
| O.C. Mounting | 4 1/8 in |
| Duty | Continuous |
| Cord Length | 6 in |
| Standards | CSA Certified (20432), UL Recognized (E40077) |
| Includes | 2 in Long Break-Off Shaft, Adapters, Brackets, Mounting Hardware and Instructions |
| RPM Range | 1801-3000 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
