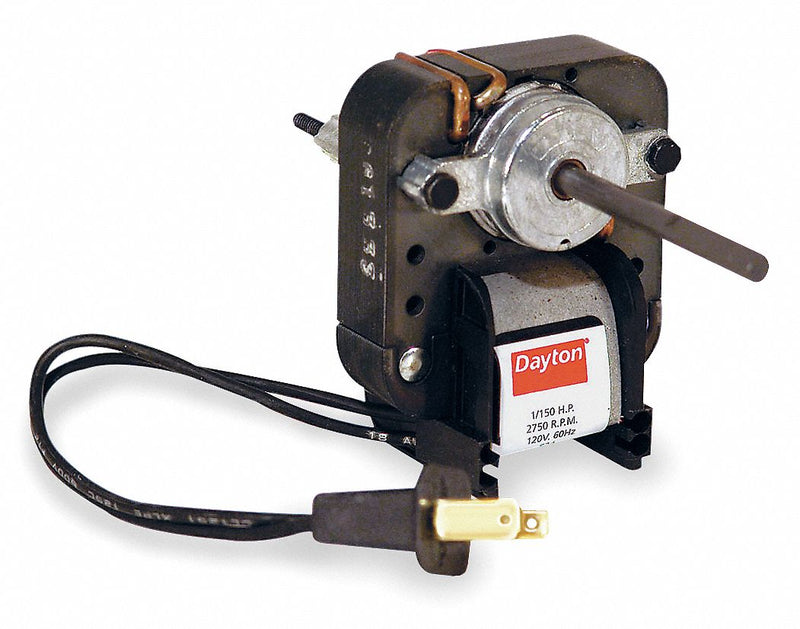

Dayton 1/150 HP C-Frame Motor, Shaded Pole, 2750 RPM, 120 Voltage,Frame Non-Standard - 4M180E

DaytonSKU: C1561247
MPN : 4M180E
Weight : 1.25 lb

filler

Price:
$36.71 $44.77

Availability : Usually Ships in 1-3 Business Days

This DAYTON C-frame motor is mechanically reversible by just inverting the rotor. Model is ideal for use in small fans and blowers found in bathroom ventilators, range hoods, electric heaters, hair dryers, slide projectors, air cleaners, humidifiers, and refrigeration equipment.,Mounting: two #8-32 studs on 1-7/8" OC,OEM replacement with 2-prong plug

ItemC-Frame Motor
Motor ApplicationHVAC/R
Motor Sub ApplicationDirect Drive Fan/Blower
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
HP1/150
No. of Speeds1
Nameplate RPM2750
FrameNon-Standard
Voltage120
Hz60
Phase1
Full Load Amps0.52
Motor Mounting TypeStud
Motor Thermal ProtectionOne-Shot
Ins. ClassB
Motor Service Factor1
Motor BearingsSleeve
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCWSE
Length Less Shaft2 5/8 in
Shaft Dia.7/32 in
Shaft Length2 5/16 in
Stack Size11/16 in
Stud Quantity2
Stud Size#6-32
Mounting Stud LocationOpposite Shaft End
O.C. Mounting1 7/8 in
Cord Length6 in
Plug Type2 Prong Non-Polarized
StandardsCSA Certified (701887), UL Recognized (E47479)
RPM Range1801-3000
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240
