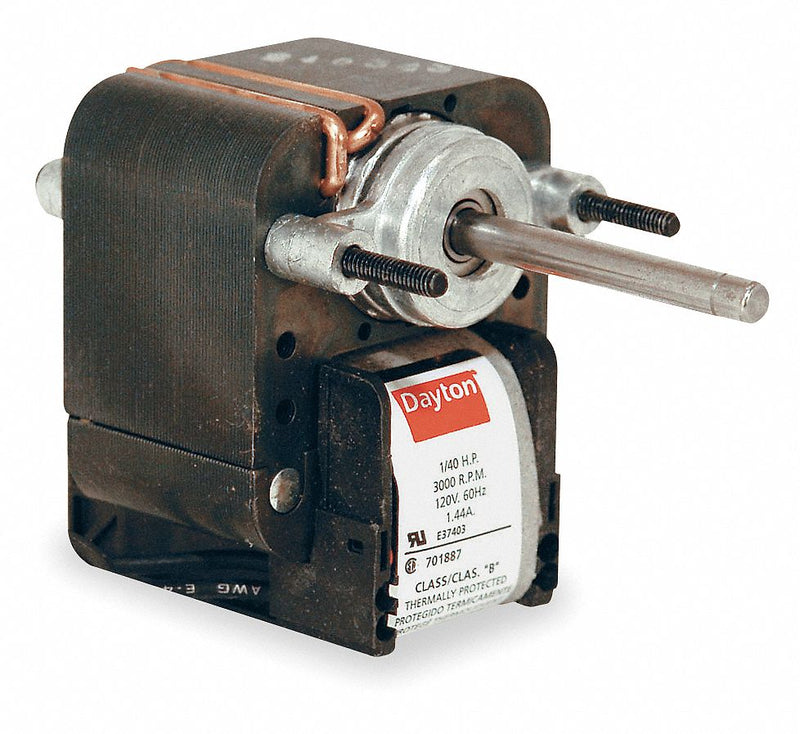

This DAYTON C-frame motor is ideal for use in small fans and blowers found in bathroom ventilators, range hoods, electric heaters, hair dryers, slide projectors, air cleaners, humidifiers, and refrigeration equipment. Mounting: two #8-32 studs at shaft end, and mounting holes on each side of the stator, 1-7/8" OC.
| Item | C-Frame Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/150 |
| No. of Speeds | 1 |
| Nameplate RPM | 3000 |
| Frame | Non-Standard |
| Voltage | 120 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 1 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Impedance with One-Shot Backup |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CWSE |
| Length Less Shaft | 1 11/16 in |
| Shaft Dia. | 3/16 in |
| Shaft Length | 2 in |
| Stack Size | 5/8 in |
| Stud Quantity | 2 |
| Stud Size | #8-32 |
| Mounting Stud Location | Shaft End |
| Mounting Holes | Opposite Shaft End |
| O.C. Mounting | 1 7/8 in |
| Cord Length | 12 in |
| Standards | CSA Certified (701887), UL Recognized (E37403/E40077/E47479) |
| RPM Range | 1801-3000 |
| Voltage Compatibility | 115, 115/208-230, 115/230, 120, 120/240 |
