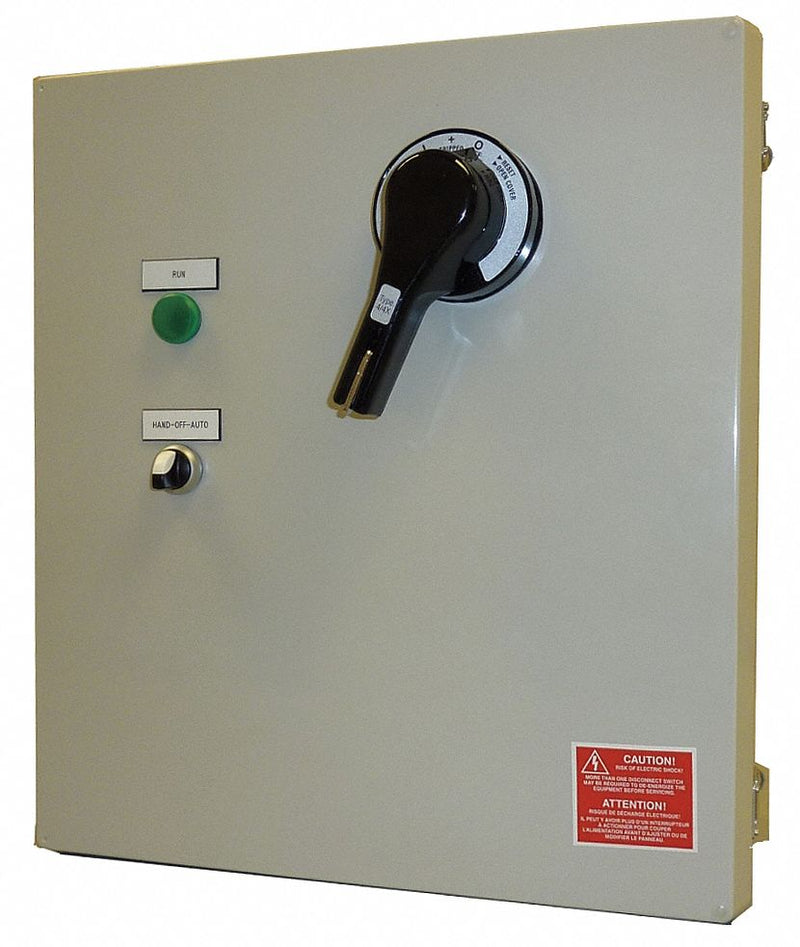

Combination soft starter with bypass protects motors and equipment from excessive torque damage while reducing space requirements. Features electronic voltage control to increase motor torque options, and built-in bypass to reduce heat and prolong starter life. 25-yr. fiberglass enclosures. Remote input control signal. Suitable for pumps, fans, and conveyors.
| Item | Combination Soft Start |
| Input Voltage | 240/480V AC at 50/60Hz |
| HP @ 3 Phase - 230V | 30 hp |
| HP @ 3 Phase - 460V | 75 hp |
| Output Current | 96 A |
| Short Circuit Protection | Motor Circuit Protector |
| Output Voltage | 240/480V AC at 50/60Hz |
| Starting Torque | Max 400% FLC Allowed |
| Phase | 3 |
| Acceleration Adjustment | 0 to 30 sec |
| Deceleration Adjustment | 0 to 30 sec |
| Dynamic Braking | No |
| NEMA Rating | 1, 3R, 4, 4X, 12 |
| Height | 19.3 in |
| Width | 17.3 in |
| Depth | 11.08 in |
| Control Type | 2 Phase |
| Key Pad Lockout | Enclosure Padlock |
| Start/Stop Control | Hands/Off/Auto |
| Control Method | Dial |
| Accepts Input Control Signal | Remote contact |
| Display | No |
| Includes | Pilot Light |
| For Use With | 3 Phase Inverter Duty Motor |
| Standards | UL/CSA/CE |
