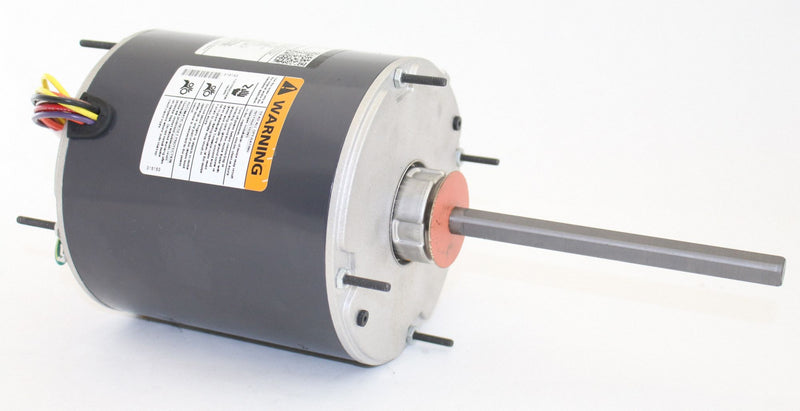

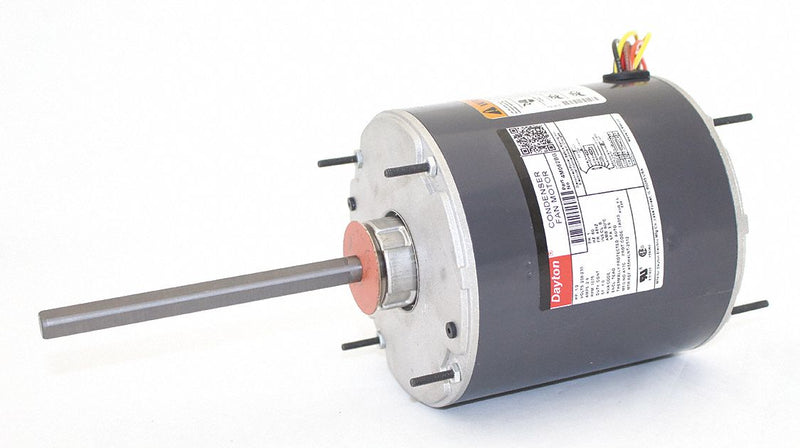

Dayton 1/2 HP Condenser Fan Motor,Permanent Split Capacitor,1075 Nameplate RPM,208-230 Voltage,Frame 48YZ - 4M062

DaytonSKU: C1561217
MPN : 4M062
Weight : 21.14 lb


$300.34 $484.42

Availability : Usually Ships in 3 Business Days

The motor nameplate on the side of the motor includes motor specifications, listing marks, motor connections, date code, and lubrication instructions. There are no replacement parts available for this model.

ItemCondenser Fan Motor
Motor DesignPermanent Split Capacitor
No. of Speeds2
Motor Shaft RotationCW/CCW
Motor Enclosure DesignTotally Enclosed Air-Over
Motor Mounting TypeStud
Motor Mounting PositionAll Angle
Shaft Dia.1/2 in
Shaft Length6 in
Motor Thermal ProtectionAuto
Max. Ambient Temp.60 Degrees C
Nameplate RPM1075
Motor ApplicationHVAC/R
Motor Sub ApplicationCondenser Fan
Full Load Amps2.9
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Overall Length12 7/16 in
Length Less Shaft6 7/16 in
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/8 in
Stud Quantity4
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size8-32 UNC x 3/4 in
Nominal Efficiency71.5 %
Lead Length30 in
Motor Shaft DesignDouble-Flat
FeaturesReversing Plug, Totally Enclosed Endshields with Removable Drain Plugs, Water Slinger
Capacitor Required2MDV7
StandardsCSA Certified (258501), UL Recognized (E37403)
