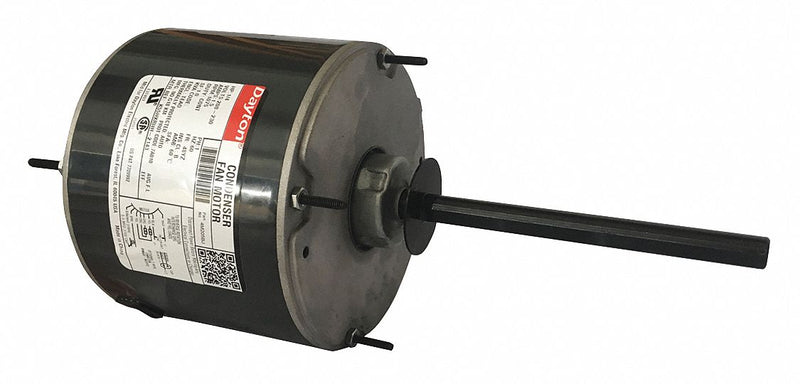

Commercial-duty shaft updown motor features higher starting torque, cooler running temperature, and reversing plug. Both endshields are totally enclosed with removable drain plugs. Can be mounted vertically or horizontally. Suitable for outdoor air conditioner condensers and refrigeration condensers.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/4 |
| No. of Speeds | 1 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48YZ |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 1/16 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1075 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 1.5-1.4 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 9 9/16 in |
| Length Less Shaft | 5 7/8 in |
| Body Dia. | 5 5/8 in |
| Bolt Circle Dia. | 5 1/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Stud Size | 8-32 NC-2A x 3/4 in |
| Lead Length | 30 in |
| Motor Shaft Design | Double-Flat |
| Features | Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs |
| Duty | Continuous |
| Capacitor Required | 2MDV4 |
| Application | Direct-Drive Blower |
| Standards | CSA Certified (258501), UL Recognized (E47479) |
