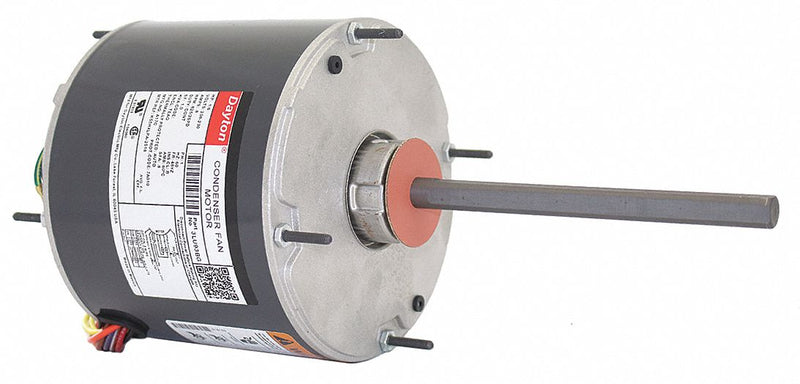

This commercial-duty motor features a high starting torque, a cool running temperature, and a reversing plug. It is suitable for outdoor air conditioner and refrigeration condensers, and can also be used on heat pumps. It can be mounted vertically or horizontally. Both endshields are totally enclosed with removable drain plugs. The shaft is double-flat and features a slinger.
| Item | Condenser Fan Motor |
| Motor Design | Permanent Split Capacitor |
| Phase | 1 |
| HP | 1/6 |
| No. of Speeds | 2 |
| Voltage | 208-230 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 48YZ |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Shaft Dia. | 1/2 in |
| Shaft Length | 6 in |
| Motor Thermal Protection | Auto |
| Max. Ambient Temp. | 60 Degrees C |
| Nameplate RPM | 1075 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 1-1 |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 10 3/4 in |
| Length Less Shaft | 4 15/16 in |
| Body Dia. | 5 5/8 in |
| Stud Quantity | 4 |
| Mounting Stud Pattern | 3-5/8 in x 3-5/8 in |
| Lead Length | 30 in |
| Motor Shaft Design | Double-Flat |
| Features | Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs |
| Duty | Continuous |
| Capacitor Required | 2MDV4 |
| Standards | CSA Certified (225293), UL Recognized (E47479) |
