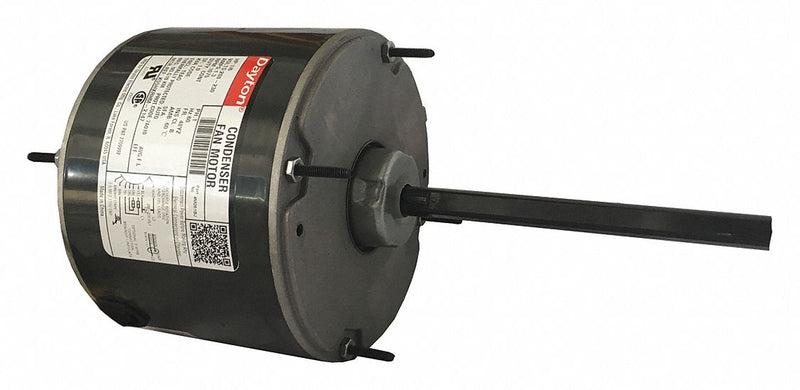

Dayton 1/6 HP Condenser Fan Motor,Permanent Split Capacitor,1075 Nameplate RPM,208-230 Voltage,Frame 48YZ - 4M261

DaytonSKU: C1561276
Availability : Usually Ships in 1-3 Business Days
MPN : 4M261
Weight : 10.0 lb
filler

Price:
$76.45 $93.23

The motor nameplate on the side of the motor includes motor specifications, listing marks, motor connections, date code, and lubrication instructions. There are no replacement parts available for this model.

ItemCondenser Fan Motor
Motor DesignPermanent Split Capacitor
Phase1
HP1/6
No. of Speeds1
Voltage208-230
Motor Shaft RotationCW/CCW
Frame48YZ
Motor Enclosure DesignTotally Enclosed Air-Over
Motor Mounting TypeStud
Motor Mounting PositionAll Angle
Shaft Dia.1/2 in
Shaft Length6 in
Motor Thermal ProtectionAuto
Max. Ambient Temp.60 Degrees C
Nameplate RPM1075
Motor ApplicationHVAC/R
Motor Sub ApplicationCondenser Fan
Hz60
Full Load Amps1.3
Ins. ClassB
Motor Service Factor1
Motor BearingsBall
Overall Length10 6/7 in
Length Less Shaft4 6/7 in
Body Dia.5 5/8 in
Bolt Circle Dia.5 1/8 in
Stud Quantity4
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Size8-32 NC-2A Thread x 3/4 in
Lead Length30 in
Motor Shaft DesignDouble-Flat
FeaturesReversing Plug, Totally Enclosed Endshields with Removable Drain Plugs
DutyContinuous
Capacitor Required2MDV2
ApplicationDirect-Drive Blower
StandardsCSA Certified (258501), UL Recognized (E47479)
