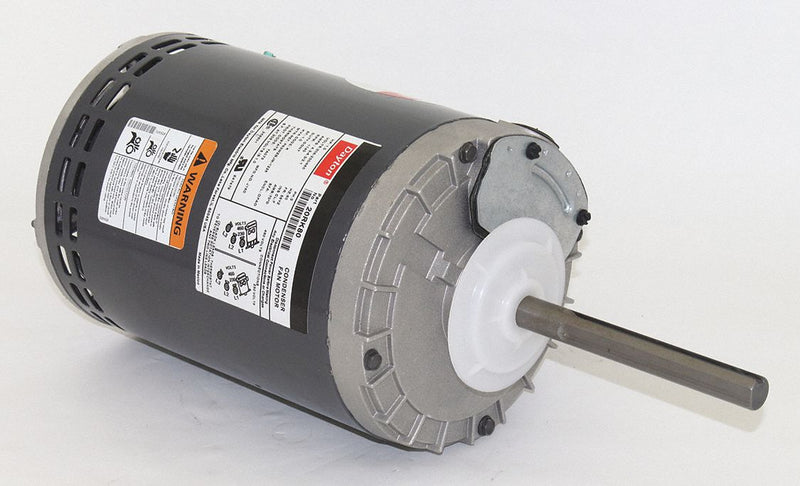

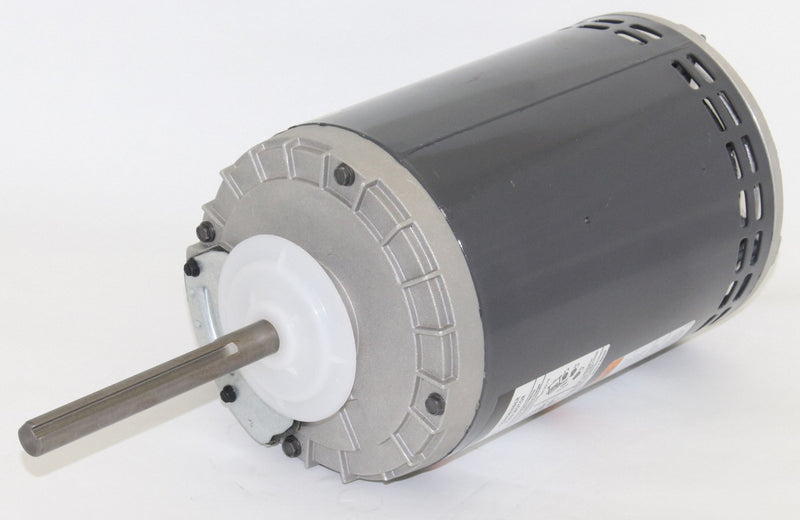

Motor includes premounted INPRO grounding rings. Inverter-duty windings. Conduit entry located at shaft end. Keyed and flat shaft.
| Item | Condenser Fan Motor |
| Motor Design | 3-Phase |
| Phase | 3 |
| HP | 1 |
| No. of Speeds | 1 |
| Voltage | 208-230/460 |
| Motor Shaft Rotation | CW/CCW |
| Frame | 56YZ |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Band |
| Motor Mounting Position | Vertical Shaft Up |
| Shaft Dia. | 5/8 in |
| Shaft Length | 5 5/8 in |
| Motor Thermal Protection | T-Stat |
| Max. Ambient Temp. | 70 Degrees C |
| Nameplate RPM | 1140 |
| Motor Application | HVAC/R |
| Motor Sub Application | Condenser Fan |
| Hz | 60 |
| Full Load Amps | 4.3-4.3/2.1 |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Overall Length | 15 3/4 in |
| Length Less Shaft | 9 3/4 in |
| Body Dia. | 6 1/2 in |
| Nominal Efficiency | 83.4 % |
| Lead Length | 6 in |
| Motor Shaft Design | Flat |
| Features | Inverter Duty Windings |
| Duty | Continuous |
| Application | Commercial Air Conditioners |
| Standards | CSA 191252, UL E47479 |
