12VDC Permanent-Magnet Parallel-Shaft Gearmotors,Enclosure: totally enclosed nonventilated Gearcase: die-cast zinc Lubrication: grease-filled Gears: phenolic and hardened steel Bearings: porous bronze sleeve on case; ball on motor Mounting: all-position Rotation: reversible Thermal protection: none Brushes: externally replaceable Ambient: 40C Seals: O-ring type on output shaft UL and C-UL Recognized
| Item | DC Gearmotor |
| Gearmotor Type | DC Gearmotor |
| Gearmotor Voltage | 12 V DC |
| Max. Torque | 150 in.-lb. |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Rear Shaft Encoder/Pulse Generator Mounting | No |
| Nameplate RPM | 20 |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |

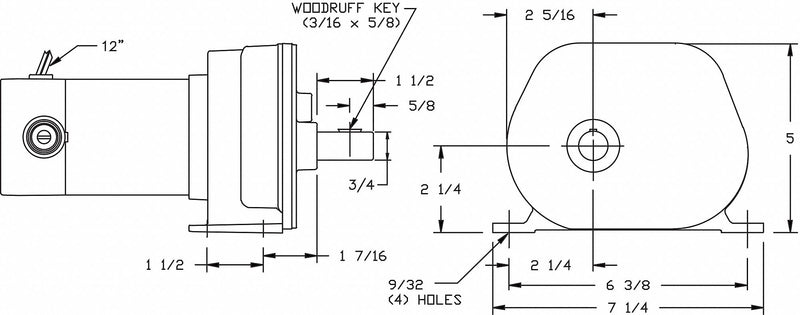

| Length Less Shaft | 8-1/2" |
| Reversible Shaft Output | No |
| Overhung Load | 250 lb. |
| Input HP | 1/15 |
| Gear Ratio | 1 |
| Full Load Amps | 6.2 |
| Insulation Class | F |
| Thermal Protection | None |
| Max. Ambient Temp. | 40 Degrees C |
| Gearmotor Rotation | CW/CCW |
| Motor Type | Permanent Magnet DC |
| Overall Length | 10" |
| Keyway Size Type | #605 Woodruff Key |
| Shaft Dia. (Dimension U) | 3/4" |
| Shaft Length (Dimension V) | 1-1/2" |
| Bearings | Porous Bronze Sleeve on Case, Ball on Motor |
| Lubrication | Grease Filled |
| Brushes | Externally Replaceable |
| Finish | Unpainted |
| Gear Material | Hardened Steel/Phenolic |
| Gear Case | Die Cast Zinc |
| Seals | O-Ring Type on Output Shaft |
| Housing Material | Die Cast Zinc |
| Standards | C-UL Recognized, UL Recognized |
| Replacement Brushes | 6YHY5 |
