Dayton Permanent Magnet Parallel Shaft gearmotor provides outstanding starting torque and adjustable speed. Has grease-filled gears and phenolic and hardened steel bearings. Features porous bronze sleeve on case; ball on motor. Designed for all-position mounting. Externally replaceable brushes. O-ring type seals on output shaft. Accepts Direct Motor-Mount Speed Control No. 2PUX3, sold separately.
| Item | DC Gearmotor |
| Gearmotor Type | DC Gearmotor |
| Gearmotor Voltage | 90V DC |
| Max. Torque | 102 in-lb |
| Gearmotor Shaft Type | Single Right |
| Gearmotor Shaft Orientation | Right Angle |
| Rear Shaft Encoder/Pulse Generator Mounting | No |
| Nameplate RPM | 24 RPM |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Reversible Shaft Output | No |
| Overhung Load | 100 lb |
| Input HP | 1/20 |
| Gear Ratio | 1 |
| Full Load Amps | 0.59 A |
| Insulation Class | F |
| Thermal Protection | None |
| Max. Ambient Temp. | 40 Degrees C |
| Gearmotor Rotation | CW/CCW |
| Motor Type | Permanent Magnet DC |
| Keyway Size Type | #404 Woodruff Key |

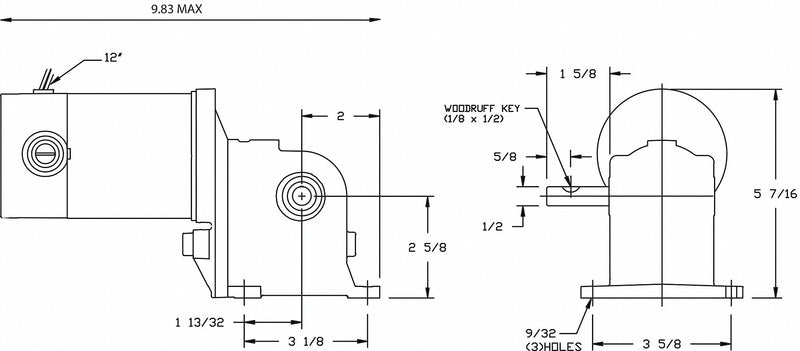

| Shaft Dia. (Dimension U) | 1/2 in |
| Shaft Length (Dimension V) | 1 5/8 in |
| Bearings | Porous Bronze Sleeve on Case, Ball on Motor |
| Lubrication | Grease Filled |
| Brushes | Externally Replaceable |
| Finish | Unpainted |
| Gear Material | Steel Input Gear, Hardened Steel Worm, Cast Iron Output Gear |
| Gear Type | Worm |
| Gear Case | Die Cast Zinc |
| Seals | Lip Type on Output Shaft |
| Housing Material | Die Cast Zinc |
| Standards | C-UL Recognized, UL Recognized |
| Replacement Brushes | 6 |
