Dayton DC Gearmotor 12VDC, Nameplate RPM: 84, Max. Torque: 50.0 in.-lb., Enclosure: TENV - 1LPK1

DaytonSKU: C1661045
MPN : 1LPK1
Weight : 14.04 lb

filler

Price:
$413.48 $666.90

Availability : Usually Ships in 30 Business Days

12VDC Permanent-Magnet Parallel-Shaft Gearmotors,Enclosure: totally enclosed nonventilated Gearcase: die-cast zinc Lubrication: grease-filled Gears: phenolic and hardened steel Bearings: porous bronze sleeve on case; ball on motor Mounting: all-position Rotation: reversible Thermal protection: none Brushes: externally replaceable Ambient: 40C Seals: O-ring type on output shaft UL and C-UL Recognized

ItemDC Gearmotor
Gearmotor TypeDC Gearmotor
Gearmotor Voltage12 V DC
Max. Torque50 in.-lb.
Gearmotor Shaft TypeSingle
Gearmotor Shaft OrientationParallel
Rear Shaft Encoder/Pulse Generator MountingNo
Nameplate RPM84
Gearmotor EnclosureTotally Enclosed Nonventilated
Gearmotor Mounting PositionAll Angle
Length Less Shaft8-1/2"
Reversible Shaft OutputNo
Overhung Load250 lb.
Input HP1/10
Gear Ratio1
Full Load Amps9
Insulation ClassF
Thermal ProtectionNone
Max. Ambient Temp.40 Degrees C
Gearmotor RotationCW/CCW
Motor TypePermanent Magnet DC

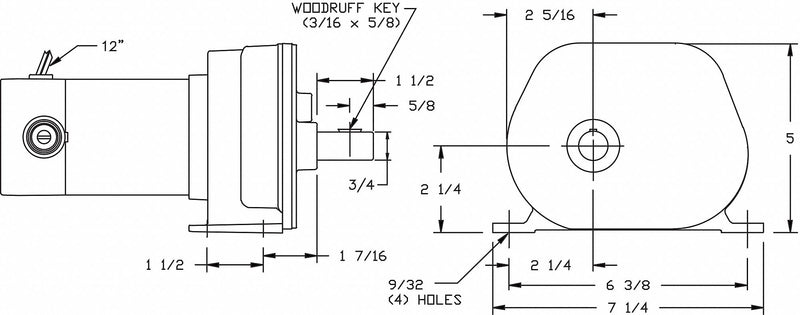

Overall Length10"
Keyway Size Type#605 Woodruff Key
Shaft Dia. (Dimension U)3/4"
Shaft Length (Dimension V)1-1/2"
BearingsPorous Bronze Sleeve on Case, Ball on Motor
LubricationGrease Filled
BrushesExternally Replaceable
FinishUnpainted
Gear MaterialHardened Steel/Phenolic
Gear CaseDie Cast Zinc
SealsO-Ring Type on Output Shaft
Housing MaterialDie Cast Zinc
StandardsC-UL Recognized, UL Recognized
Replacement Brushes6YHY5
