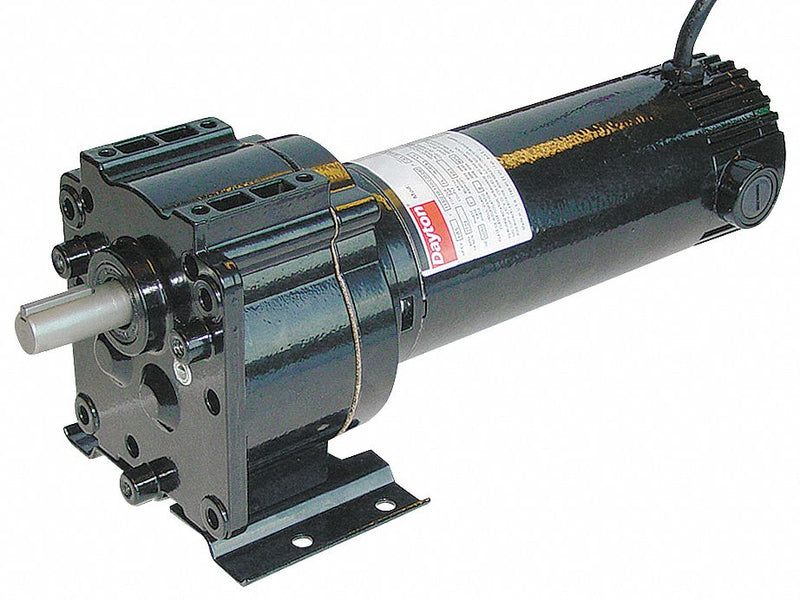

This DC gearmotor features a totally enclosed, nonventilated enclosure. It can be mounted in small spaces and in multiple positions. To assemble, simply rotate the gearbox onto the motor helical shaft.
| Item | DC Gearmotor |
| Gearmotor Type | DC Gearmotor |
| Gearmotor Voltage | 12 V DC |
| Max. Torque | 102 in.-lb. |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Rear Shaft Encoder/Pulse Generator Mounting | Yes |
| Nameplate RPM | 94 |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |
| Length Less Shaft | 10-1/8" |
| Reversible Shaft Output | No |
| Overhung Load | 150 lb. |
| Input HP | 1/6 |
| Gear Ratio | 1 |
| Full Load Amps | 14.5 |
| Thermal Protection | None |
| Max. Ambient Temp. | 40 Degrees C |
| Gearmotor Rotation | CW/CCW |
| Motor Type | Permanent Magnet DC |
| Overall Length | 11-5/8" |

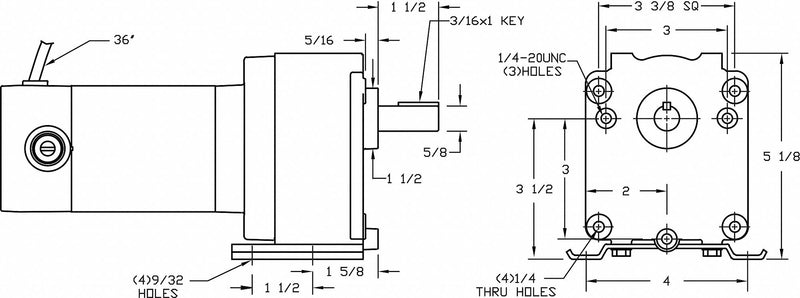

| Shaft Dia. (Dimension U) | 5/8" |
| Shaft Length (Dimension V) | 1-1/2" |
| Bearings | Needle Roller and Thrust Balls on Case, Ball on Motor |
| Lubrication | Permanent Heavy Fluid Gear Oil |
| Brushes | Externally Replaceable |
| Gear Material | Hardened Steel |
| Gear Case | Die Cast Aluminum |
| Seals | On Input and Output Shaft |
| Housing Material | Die Cast Aluminum |
| Standards | C-UL Recognized, UL Recognized |
| Replacement Brushes | 6YHY5 |
