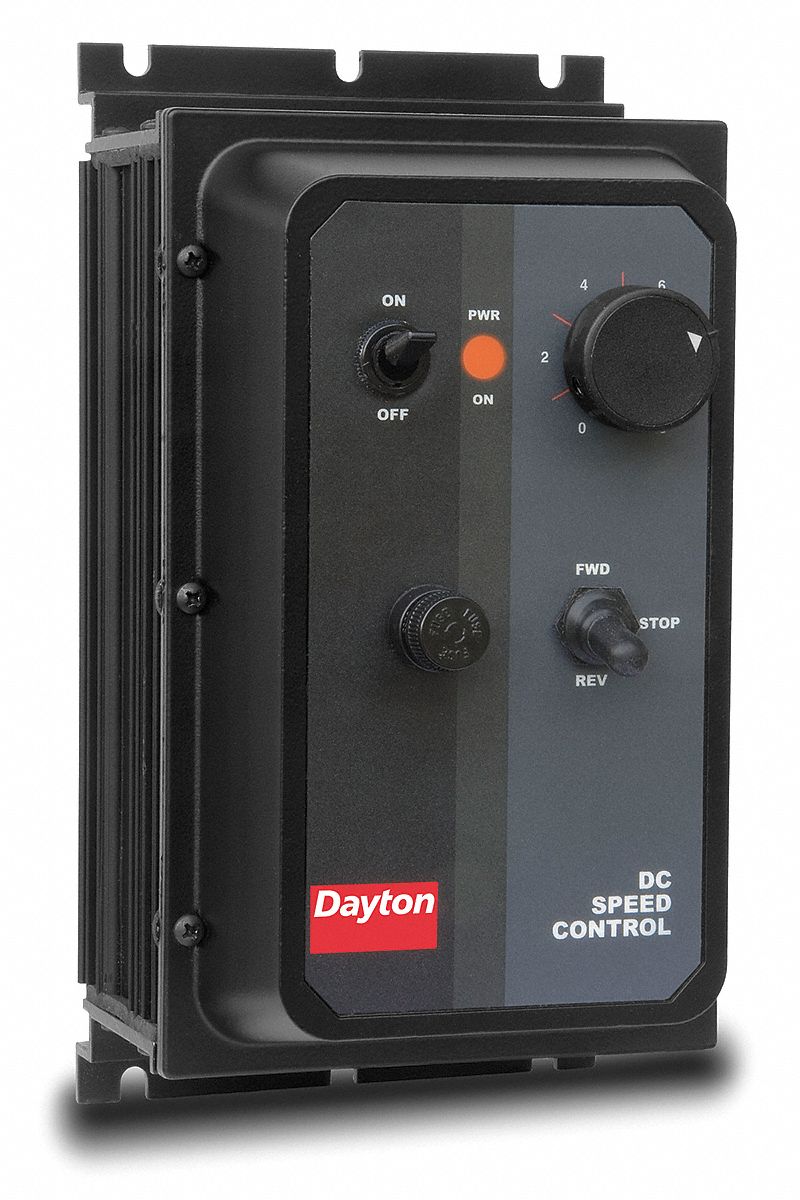

This adjustable-speed motor control is designed for use as a replacement controller for compatible models. Use on constant (or diminishing) torque applications such as conveyors, fans, blowers, etc. (available separately).
| Item | DC Speed Control |
| Enclosure | NEMA 4/12 |
| Max. Amps | 1.2 A |
| Voltage Output | 0 to 90/180V DC |
| Speed Range | 1 |
| Rotation | Reversable |
| External Switches | ON/OFF, FWD/STOP/REV |
| AC Input Voltage | 120/240V AC |
| DC Speed Control | SCR |
| HP @ Lower Volts | 1/50 to 1/8 |
| HP @ Higher Volts | 1/25 to 1/4 |
| Linear Acceleration | Fixed 1 to 3 sec |
| Linear Deceleration | Fixed 0.5 sec |
| Current/Torque Limit | Adjustable |
| Speed Regulation | +/-1% of Motor Base Speed |
| Shunt Wound Volts | 100/200V DC |
| Accepts Tach Feedback | Yes |
| Dynamic Braking | Yes |
| Power On Light | Yes |
| IR Compensation | Adjustable |
| Mount Type | Wall |
| Height | 9.5 in |
| Depth | 5.5 in |
| Width | 5 in |
| Operating Temp. | -10 Degrees to 45 Degrees C |
| For Use With | For Packaging Equipment, Pumps, Fans, Blowers, Conveyors and Other Constant or Dimishg Torques |
| Standards | cULus Listed |
| Includes | Built-in Transient and Surge Suppression, Run/Stop Switch |
